DIGITAL SIGNAGE / IN STOCK

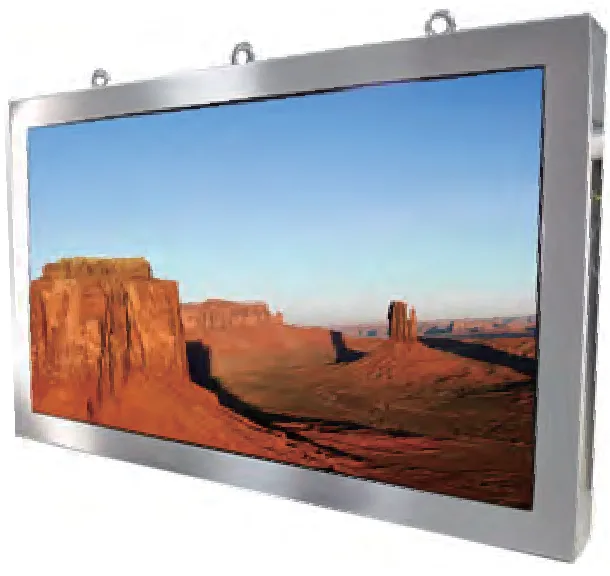

IBSP42
42-inch IP66 Stainless Steel panel PC /w Intel Power Processor
42-inch IP66 Stainless Steel panel PC /w Intel Power Processor. Local warranty support and engineering customization available on request.
STORAGE
-20˚C~+60˚C
DISPLAY
Size/Panel Type
POWER
AC100~240V
DIMENSIONS
1041.4mm (W) x 633.4mm (H) x 80mm (D)/39kgs
P/N # IBSP42
Diagram Specifications
22 ROWS
| Display | Size/Panel Type |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (cd/m²) | 450cd/m² / (Optional: 1000 cd/m² ) |
| Contrast Ratio | 4000:01:00 |
| Response Time | 6.5 ms |
| Backlight | CCFL (Optional: LED backlight unit) |
| Colors | 16.7M Colors |
| Viewing Angle (H/V) | 178º/178º |
| Touch Screen | Touch Screen Type |
| Surface Hardness | 7~8H (AR Glass) |
| Environment | Operating Temperature |
| Storage Temperature | -20˚C~+60˚C |
| Humidity | 5%~95% RH(Non-Condensing) |
| Water-Proof Rating | IP66/NEMA4 , 6 Side Water-Proof |
| System | CPU/Memory |
| OSD | On/Off, Power Indicator, HDD Indicator |
| I/O Interface | LAN x 1, USB x 2, Power in x 1 |
| Power Input | AC100~240V |
| Power Consumption | 160W |
| Certification | FCC/CE/RoHS Compliance |
| Mounting | 400 x 200mm (VESA); 400 x 340mm |
| Dimension/Weight | 1041.4mm (W) x 633.4mm (H) x 80mm (D)/39kgs |
I/O — Rear panel
Front access
Where the IBSP42 is deployed
USE CASE
Digital signage
Unattended media players for retail, transit, and wayfinding displays.
USE CASE
Video walls
Multi-display outputs driving large-format and multi-panel video walls.
USE CASE
Interactive displays
Touch-enabled signage for interactive wayfinding and self-service.
USE CASE
Outdoor advertising
Sunlight-readable, sealed players for outdoor and semi-outdoor signage.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓IBSP42 datasheetPDF document
