IB996

Name: IB996
Brand: IBASE Technology
SKU: IB996
Availability: InStock

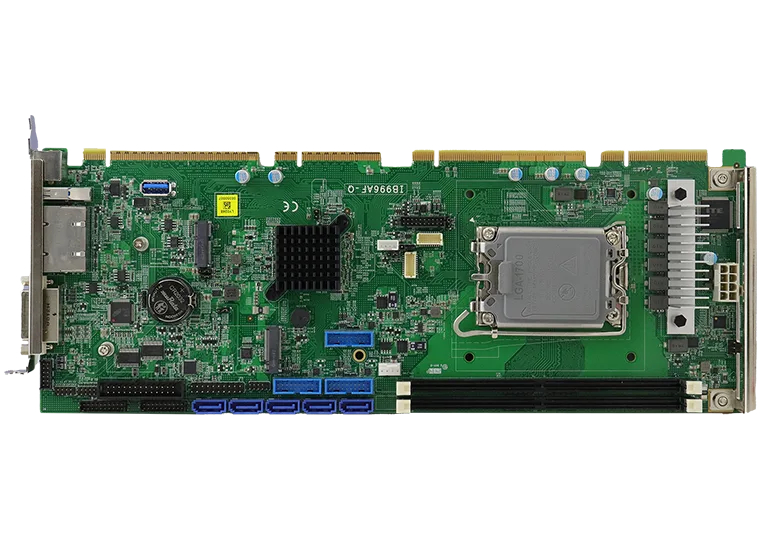

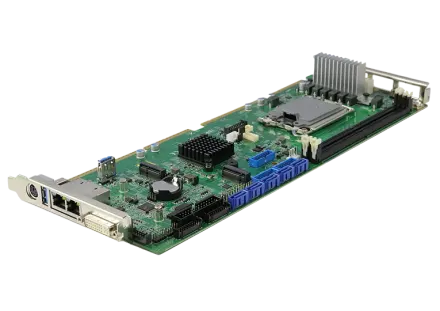

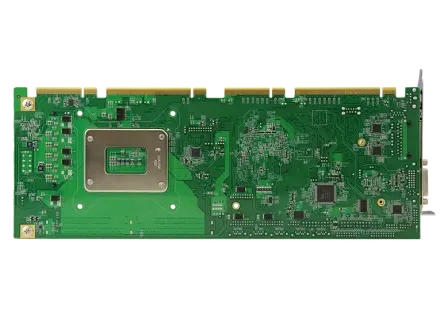

Full-Size CPU Card with 14th/13th/12th Gen Intel® Core™ DT processors (RPL-S Refresh Platform)

Full-Size CPU Card with 14th/13th/12th Gen Intel® Core™ DT processors (RPL-S Refresh Platform). Local warranty support and engineering customization available on request.

CPU

LGA1700

MEMORY

2x DDR5-5600MHz DIMM, Max. 64GB, Non-ECC

STORAGE

1x M.2 (supports NVMe)

DISPLAY

Supports DVI-I, DVI-D, 24-bit dual channel LVDS

Full-Size CPU CardCPU Card

REQUEST QUOTE DATASHEET (PDF)

P/N # IB996

Quick Guide Driver Introduction to Watchdog Timer

Specifications

26 ROWS

CPU Socket	LGA1700
CPU	14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processors
PCH	Intel® Q670E PCH
Memory	2x DDR5-5600MHz DIMM, Max. 64GB, Non-ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 (supports NVMe)
Expansion Slots	4x PCI, 4x PCI-E (x1) or 1x PCI-E (x4)1x PCI-E (x16) from backplane
Mini Type Slots	1x M.2 (M-Key, type:2280, supports NVMe)1x M.2 (E-Key, type:2230, supports CNVi)
Graphics Controller	Intel® DT processor integrated Xe graphics
Video Output	Supports DVI-I, DVI-D, 24-bit dual channel LVDS
Ethernet	Intel® I226LM 2.5G LANIntel® I226V 2.5G LAN (as 2nd LAN)
I/O Chip	Fintek F81966AB-I
Serial Port	1x RS232/422/485 (jumperless selection), 3x RS232
USB 2.0	1x USB 2.0 via M.2 (E-Key)

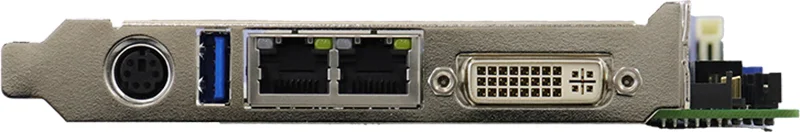

USB 3.X	6x USB 3.2 on board1x USB 3.2 on edge IO1x USB 3.2 Type-A on board (vertical type)
Serial ATA	5x SATA III
Audio	Intel® PCH built-in HD audio controller + Realtek ALC888S codec
TPM	dTPM (2.0)
Others	Printer port, Digital I/O (4-in/ 4-out), RAID, iAMT (16.1)
Dimensions (L x W)	338mm x 126mm (13.3" x 4.96")
Power Consumption	Intel® Core™ i9-14900 Processor, Up to 5.80 GHzATLA AD5LHC16PBA1-CCAw/ 2x DDR5 5600 16GB+3.3V : 1.24A+5V : 0.35A+5VSB : 0.08A+12V : 23.45A
Operating Temperature	0°C ~ 60°C(32°F ~ 140°F)
Storage Temperature	-20°C ~ 80°C(-4°F ~ 140°F)
Relative Humidity	90%(non-condensing @60°C)
