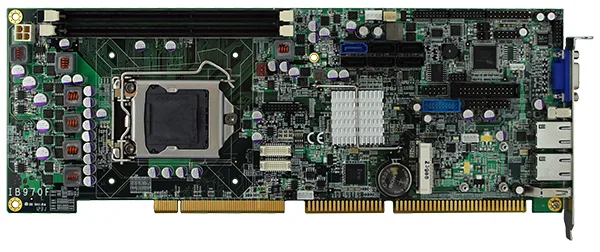

IB970
Carte CPU — LGA1155 3rd Gen. Intel Core™ i7 / i5 / i3 Full Size Intel E75 or Q77 Express Chipset
Carte CPU — LGA1155 3rd Gen. Intel Core™ i7 / i5 / i3 Full Size Intel E75 or Q77 Express Chipset. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | 3rd Generation Intel Core™ i7 / i5 / i3, Pentium QC/DC processors; Up to 3.4GHz |
|---|---|
| Chipset | Intel® B75 PCH · Intel® Q77 PCH |
| BIOS | AMI BIOS, ACPI supported |
| Mémoire système | Two DDR3 sockets; Up to 16GB 1600/1333/1066 MHz , w/o ECC |
| LAN | Intel 82579V Gigabit LAN PHY; Intel 82583V PCI-Gigabit LAN; RJ-45 on board |
| Audio | Intel® B75/Q77 chipset built-in HD audio with Realtek ALC662 codec for 5.1 channel output |
| USB | 5x ports 2,0, 3x ports 3.0, |
| Surveillance matérielle | Monitors system/CPU temperature and voltage status |
| Minuterie de surveillance | Generates system reset; 256 levels |
| E/S numériques | 4 in and 4 out |
| PCI-to-ISA bridge | ITE IT8888G x1 for high drive ISA bus |
| Connecteurs de bord | DB15 x1 for VGA RJ45 x 2 for LAN 1 & 2 USB 2.0 x 1 USB 3.0 x 1 |
| Dimensions | 338mm x 122mm (13.31" x 4.8") |
| Consommation électrique | TBC |
E/S — Panneau arrière
Accès frontal
Où le IB970 est déployé
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Nos ingénieurs d'application adapteront votre environnement, votre pile logicielle et vos exigences d'E/S à la bonne plateforme — ou modifieront celle-ci.
PARLER À UN INGÉNIEURRessources
- TÉLÉCHARGER ↓IB970 user manualDocument PDF
- TÉLÉCHARGER ↓Introduction au chien de gardeDocument PDF
Licensed customers get access to BIOS source, schematics, and full production test documentation.
