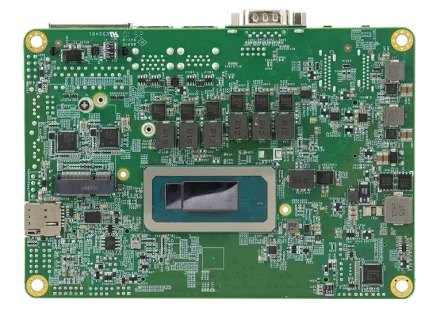

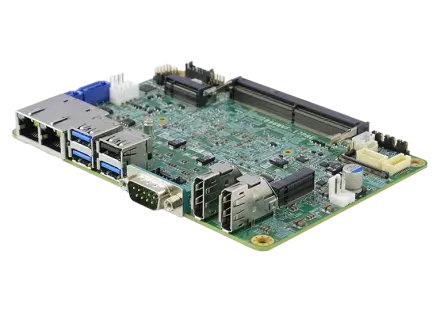

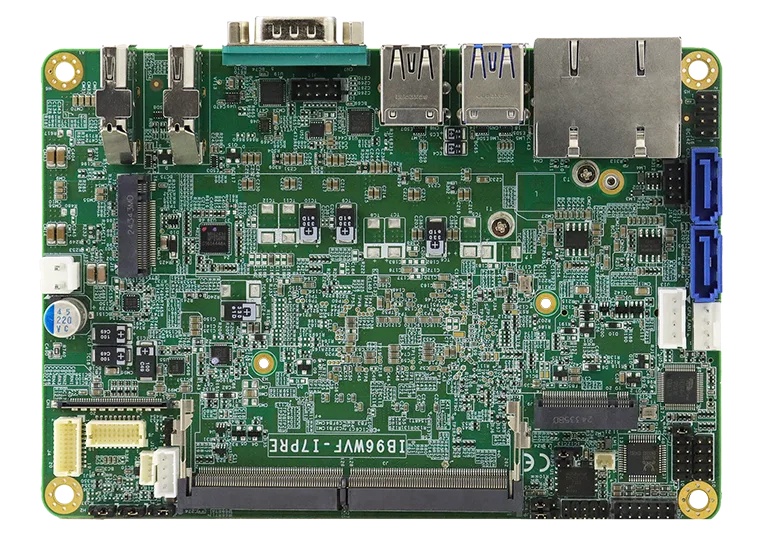

IB96W

Name: IB96W
Brand: IBASE Technology
SKU: IB96W
Availability: InStock

Ordinateur monocarte 3,5 po — 13th Gen Intel® Core™ Mobile Wide-Temp Processor

Ordinateur monocarte 3,5 po — 13th Gen Intel® Core™ Mobile Wide-Temp Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Onboard 13th Gen Intel® Core™ i7-1370PRE processor, support wide-temp

MÉMOIRE

1x DDR5 SO-DIMM, Max.32GB, supports IBECC

STOCKAGE

M.2 (M2280 for NVMe) SATA III

AFFICHAGE

2x DisplayPort, eDP, and LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # IB96W

Pilote Introduction au chien de garde

Spécifications

24 LIGNES

Processeur	Onboard 13th Gen Intel® Core™ i7-1370PRE processor, support wide-temp
PCH	N/A
Mémoire	1x DDR5 SO-DIMM, Max.32GB, supports IBECC
BIOS	AMI
Minuterie de surveillance	256 levels
Surveillance matérielle	Yes
Interface de stockage	M.2 (M2280 for NVMe) SATA III
Emplacements Mini	1x M.2 (M-Key, Type:2280, with PCle (4x) signal only, supports NVMe)1x M.2 (E-Key, Type:2230, with PCle (1x) & USB 2.0 signal, supports CNVi)1x M.2 (B-Key, Type:3052, with PCle (1x) & USB 3.2 signal, supports 5G/LTE
Contrôleur graphique	13th Gen Intel® Core™ mobile processor integrated graphics

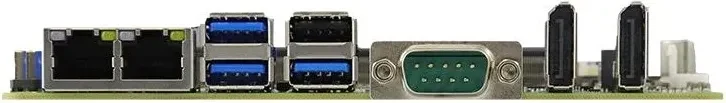

Sortie vidéo	2x DisplayPort, eDP, and LVDS
Ethernet	2x Intel® I226IT 2.5G LAN
Chipset d’E/S	Fintek F81804U-I
Port série	2x COM (RS232/422/485)
USB 2.0	3x USB 2.0 (1x Type-A ; 2x via pin headers)
USB 3.X	3x USB 3.2 (Type-A)
Serial ATA	2x SATA III
Audio	Integrated HD audio with ALC888S codec
TPM	fTPM only
Autres	Digital I/O (4-in/4-out); +12V~+24V DC-in
Dimensions (L x l)	102mm x 147mm (4“ x 5.8“)
Consommation électrique	Intel® Core™ i7-1370PRE processor, Up to 4.8GHz w/ 1x 32GB DDR5-5600 memory+24V: 3.82A
Température de fonctionnement	-40°C~+75°C (-40°F~+167°F)
Température d’entreposage	-45°C~+80°C (-49°F~176°F)
Humidité relative	10% ~ 90% (non-condensing)
