IB966NEW
3.5" Single Board Computer with Intel® Core™ Ultra Series 3 Processor
3.5" Single Board Computer with Intel® Core™ Ultra Series 3 Processor. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel® Core™ Ultra X7 358H / Ultra 7 356H / Ultra 7 355 processors (formerly Panther Lake) |
|---|---|
| PCH | N/A |
| Memory | 2x DDR5 SO-DIMM, 7200MT/s, Non-ECC, Max.128GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 3x M.2 (M2280 for NVMe, M2242, E2230 for CNVi) |
| Mini Type Slots | 1x M.2 (M-Key, Type:2280, supports NVMe with PCIe(4x) signal only)1x M.2 (M-Key, Type:2242)1x M.2 (E-Key, Type:2230, supports CNVi) |
| Graphics Controller | Intel® Core™ Ultra 300H built-in Xe3 Graphics |
| Video Output | HDMI, DisplayPort (connector & Type-C), LVDS, eDP |
| Ethernet | Dual 2.5GbE LAN (Intel® I226LM & I226V) |
| I/O Chipset | Fintek F81804U |
| Serial Port | 2x RS232/422/485 |
| USB 2.0 | 3x USB 2.0 (1x Type-A; 2x via pin headers) |
| USB 3.X | 1x USB 3.2 Type-C, 2x USB 3.2 Type-A |
| Audio | Intel® built-in HD audio + ALC888S codec |
| TPM | dTPM |
| Others | Digital I/O (4-in/4-out); iAMT; Watchdog timer |
| Dimensions (L x W) | 102mm x 147mm (4“ x 5.8“) |
| Power Consumption | TBD |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
I/O — Rear panel
Front access
Where the IB966 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESSOrdering
| IB966AF-358H | - Intel® Core™ Ultra X7 358H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C), LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V), Optional heatsink Request a quote |
|---|---|
| IB966AF-356H | - Intel® Core™ Ultra 7 356H SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C), LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V), Optional heatsink Request a quote |
| IB966AF-355 | - Intel® Core™ Ultra 7 355 SoC, onboard 3.5" SBC, w/ dual 2.5Gb, HDMI + 2x DisplayPort (DisplayPort connector & Type-C), LVDS & eDP, 2x COM, 3x M.2, supports iAMT& dTPM, DC-in (12V~24V), Optional heatsink Request a quote |

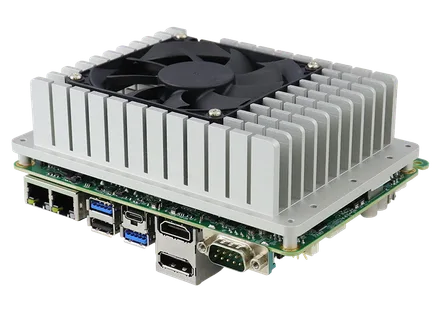

| HSIB966-B | - Heatsink with fan for IB966 Request a quote |
| HSIB962-2 | - Heat Spreader for IB966 Request a quote |
| IB76A-3 | - Cable Kit w/ USB, COM & Power Request a quote |
