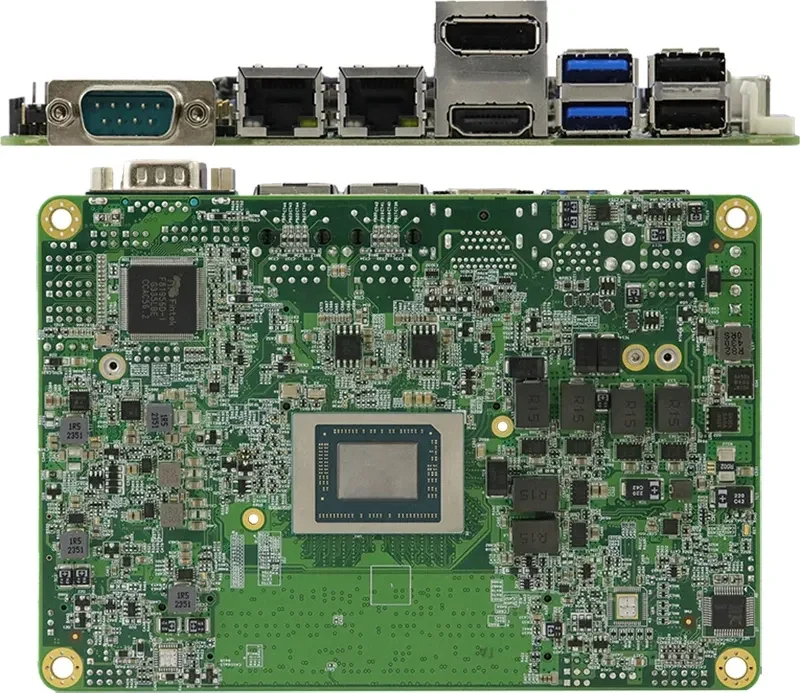

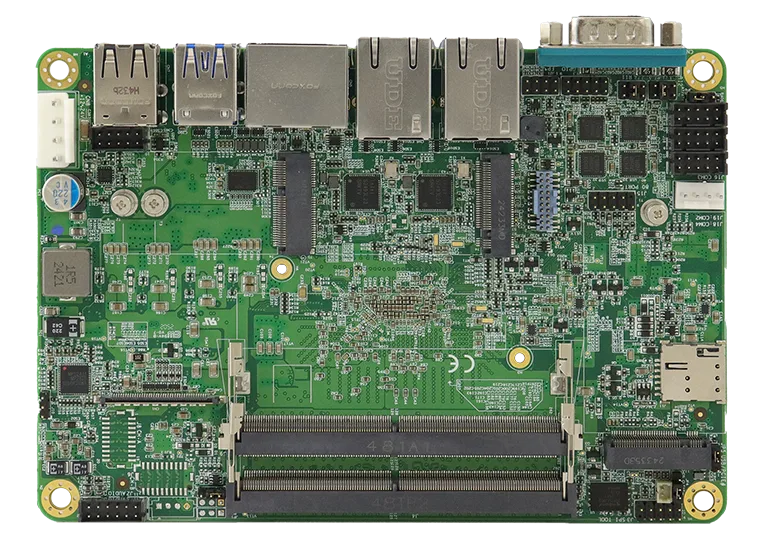

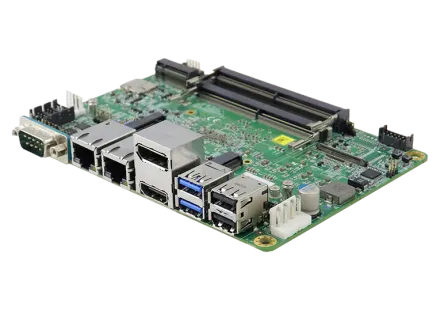

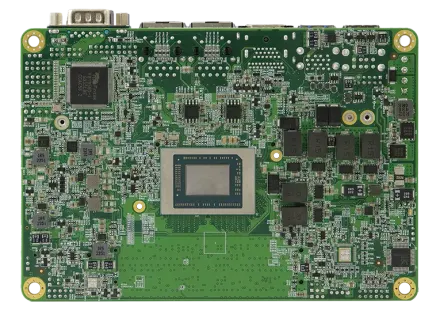

IB301

Name: IB301
Brand: IBASE Technology
SKU: IB301
Availability: InStock

3.5" Single Board Computer with AMD Ryzen™ Embedded 8000 Series

3.5" Single Board Computer with AMD Ryzen™ Embedded 8000 Series. Local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded 8000 series APU

MEMORY

Dual Channel SO-DIMM, DDR5 5600, Max. 128GB (per DIMM), Total capacity: 256GB

STORAGE

1x PIC-E Gen4 x4 (M.2 NVMe) M-Key Type 2280

DISPLAY

1x DP 2.1, max resolution: 8K@60Hz (Up to DP 2.1 / UHBR10 (10Gbps))1x HDMI 2.1, max resolution: 4K@120Hz 10bpc, 8K60A 10bpc (4:2:0) (Up to HDMI 2.1 FRL and 10G with Re-driver (Windows) / 2.0b (Linux))1x eDP 1.5 [original eDP, DP0], max resolution: 4K@60Hz1x LVDS [original DP, DP1]max resolution: Dual Channel 18/24bit, up to 1920x1080 @ 60Hz

x86 based 3.5 Single Board…Single Board Computer

REQUEST QUOTE REQUEST DATASHEET

P/N # IB301

Driver Introduction to Watchdog Timer

Specifications

23 ROWS

CPU	AMD Ryzen™ Embedded 8000 series APU
PCH	N/A
Memory	Dual Channel SO-DIMM, DDR5 5600, Max. 128GB (per DIMM), Total capacity: 256GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x PIC-E Gen4 x4 (M.2 NVMe) M-Key Type 2280
Mini Type Slots	1x M.2 (E-Key, Type:2230, supports CNVi)1x M.2 (B-Key, Type:3052, supports 5G/LTE1x SIM socket (Nano SIM)
Graphics Controller	RDNA3 graphics with up to 6 WGPs (Work Group processors)
Video Output	1x DP 2.1, max resolution: 8K@60Hz (Up to DP 2.1 / UHBR10 (10Gbps))1x HDMI 2.1, max resolution: 4K@120Hz 10bpc, 8K60A 10bpc (4:2:0) (Up to HDMI 2.1 FRL and 10G with Re-driver (Windows) / 2.0b (Linux))1x eDP 1.5 [original eDP, DP0], max resolution: 4K@60Hz1x LVDS [original DP, DP1]max resolution: Dual Channel 18/24bit, up to 1920x1080 @ 60Hz
Ethernet	2x Intel® I226-V 2.5 Gigabit LAN
I/O Chipset	Fintek F81956D-I
Serial Port	2x RS232/422/485 COM port (configurable)2x RS232 COM port
USB 2.0	4x USB 2.0 (2 for Type-A, 2 for Pin Header)
USB 3.X	2x USB 3.2 Gen2 (10Gbps)
Serial ATA	N/A
Audio	Realtek audio codec ALC888S-VD2-GRAudio Header x 1 (for Line-in/Line-out/MIC)
TPM	fTPM as default (dTPM Option: SLB9672)
Others	Digital I/O(4-in/ 4-out)
Dimensions (L x W)	102 mm x 147 mm (4" x 5.7")
Power Consumption	TBD
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
