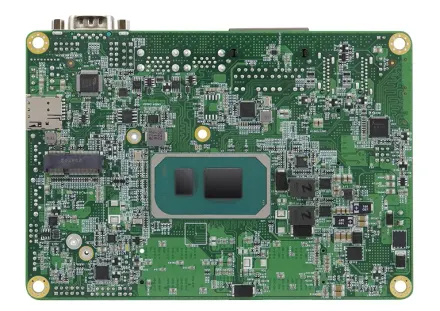

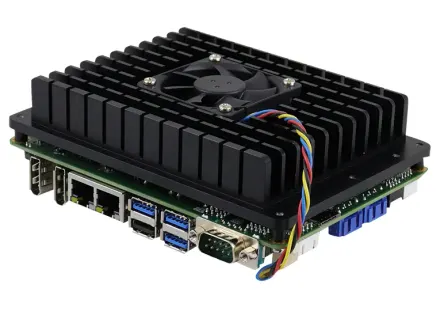

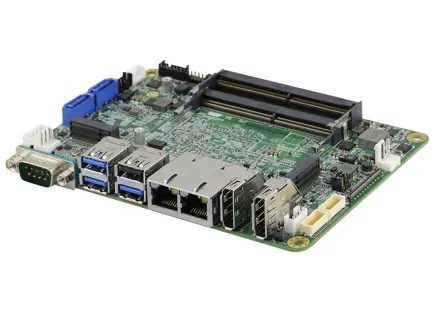

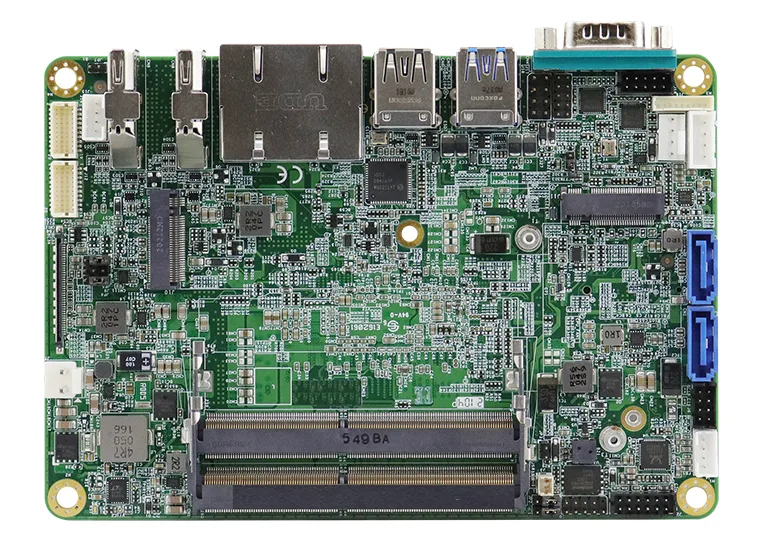

IB953
3.5" Single Board Computer with 11th Gen Intel® Core™ i7/i5/i3 / Celeron® SoC
3.5" Single Board Computer with 11th Gen Intel® Core™ i7/i5/i3 / Celeron® SoC. Local warranty support and engineering customization available on request.
Specifications
| CPU | 11th Gen Intel® Core™ i7-1185G7E 11th Gen Intel® Core™ i5-1145G7E 11th Gen Intel® Core™ i3-1115G4EIntel® Celeron® 6305E |
|---|---|
| PCH | Integrated in 11th Gen Intel® Core™ / Celeron® processor |
| Memory | DDR4-3200 SO-DIMM, Max. 64GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 1x M.2 (M-Key) |
| Mini Type Slots | 1x M.2 (M-Key, Type:2280, supports NVMe with PCI-E(4x) signal only)1x M.2 (E-Key, Type:2230, supports CNVi)1x M.2 (B-Key, Type:3052, supports 5G) |
| Graphics Controller | Intel® Gen 12 Graphics |
| Video Output | 2x DisplayPort, eDP and 24-bit dual-channel LVDS |
| Ethernet | IB953AF series: Intel® I219LM Gigabit LAN PHYIB953EF series: Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN) |
| I/O Chipset | Fintek F81804U-I |
| Serial Port | 2x RS232/422/485 (Jumper-less selection) |
| USB 2.0 | 2x USB2.0 (Pin-header), 1x USB2.0 (Type-A) |
| USB 3.X | 3x USB3.1 (Type-A) |
| Serial ATA | 2x SATA III |
| Audio | Builit-in HD with Realtek ALC269 w/ class-D amplifier |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in/4-out), EuP/ErP, +12V~+24V DC-in (+/-10%), supports IBECC (depend on CPU SKU) |
| Dimensions (L x W) | 102mm x 147mm (4" x 5.8") |
| Power Consumption | Intel® i7-1185G7E 2.8GHz/ w/ 2x16GB DDR4-3200 +12V: 3.71A Intel® i3-1115G4E 3.00GHz w/ 2x16GB DDR4-3200 +12V: 3.26A |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -20°C~80°C |
| Relative Humidity | 95% (non-condensing @60°C) |
I/O — Rear panel
Front access
Where the IB953 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
