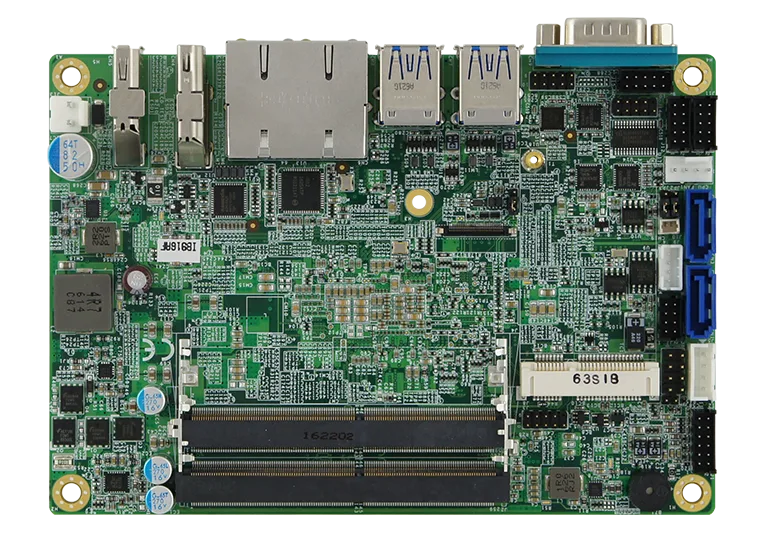

IB916

Name: IB916
Brand: IBASE Technology
SKU: IB916
Availability: InStock

Ordinateur monocarte 3,5 po — 7th Gen Intel® Core™ U-Series Processor

Ordinateur monocarte 3,5 po — 7th Gen Intel® Core™ U-Series Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz

MÉMOIRE

2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)

STOCKAGE

1x mSATA

AFFICHAGE

Supports eDP, DisplayPort and HDMI

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # IB916

Documentation Pilote Introduction au chien de garde

Spécifications

24 LIGNES

Processeur	BGA1356 for 7th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH	Integrated in 7th Gen Intel® Core™ U-Series processor
Mémoire	2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)
BIOS	AMI
Minuterie de surveillance	256 levels
Surveillance matérielle	Yes
Interface de stockage	1x mSATA
Emplacements Mini	1x Mini PCI-E (full-size)
Contrôleur graphique	7th Gen Intel® Core™ U-Series processor integrated graphics
Sortie vidéo	Supports eDP, DisplayPort and HDMI
Ethernet	IB916AF series: Intel® I219LM LAN PHYIB916F series: Intel® I219V LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
Chipset d’E/S	Fintek F81846AD-I
Port série	1x RS232/422/485 (jumper-less selection), 3x RS232
USB 2.0	2x USB 2.0 via pin header
USB 3.X	4x USB 3.0 on board
Serial ATA	2x SATA III
Audio	7th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM	TPM (2.0)
Autres	Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x l)	102mm x 147mm (4" x 5.8")
Consommation électrique	Intel® i5-7300U, 2.6GHz w/ 8GB DDR4-2133, +12V: 2.06AIntel® i3-7100U, 2.4GHz w/ 8GB DDR4-2133, +12V: 2.24A
Température de fonctionnement	0°C~60°C ( 32°F~140°F)
Température d’entreposage	-20°C~80°C ( -4°F~176°F)
Humidité relative	90% (non-condensing @60°C)
