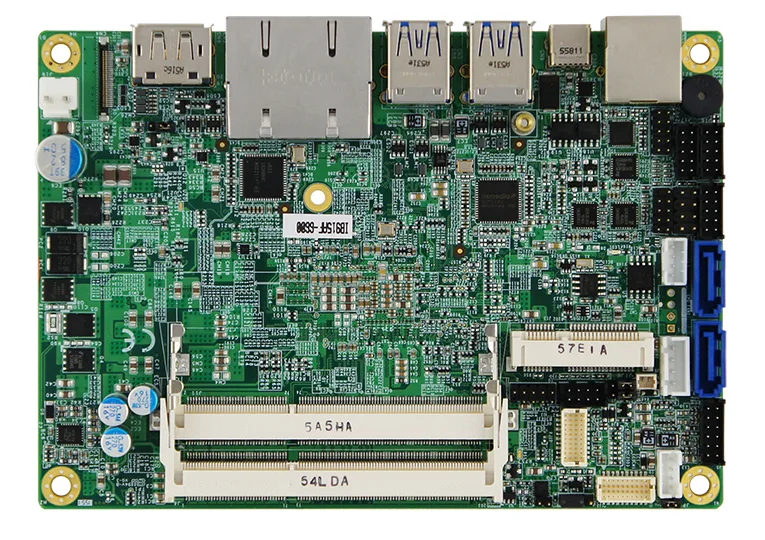

IB915

Name: IB915
Brand: IBASE Technology
SKU: IB915
Availability: InStock

Ordinateur monocarte 3,5 po — 6th Gen Intel® Core™ U-Series Processor

Ordinateur monocarte 3,5 po — 6th Gen Intel® Core™ U-Series Processor. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

BGA1356 for 6th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz

MÉMOIRE

2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)

STOCKAGE

1x mSATA

AFFICHAGE

Supports eDP, DisplayPort and 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # IB915

Documentation Pilote Introduction au chien de garde

Spécifications

24 LIGNES

Processeur	BGA1356 for 6th Gen Intel® Core™ U-Series i7/i5/i3/ Celeron® DC processors, up to 3.4GHz
PCH	Integrated in 6th Gen Intel® Core™ U-Series processor
Mémoire	2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
BIOS	AMI
Minuterie de surveillance	256 levels
Surveillance matérielle	Yes
Interface de stockage	1x mSATA
Emplacements Mini	1x Mini PCI-E (full-size)
Contrôleur graphique	6th Gen Intel® Core™ U-Series processor integrated graphics
Sortie vidéo	Supports eDP, DisplayPort and 24-bit dual-channel LVDS
Ethernet	IB915AF: Intel® I219LM LAN PHYIB915F: Intel® I219V LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
Chipset d’E/S	Fintek F81846AD-I
Port série	1x RS232/422/485 (jumper-less selection), 3x RS232
USB 2.0	2x USB2.0 via pin header
USB 3.X	1x USB 3.1(Type-C)4x USB 3.0 on board
Serial ATA	2x SATA III
Audio	6th Gen Intel® Core™ U-Series processor built-in HD audio controller + Realtek ALC888S codec
TPM	N/A
Autres	Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x l)	102mm x 147mm (4" x 5.8")
Consommation électrique	Intel® Core™ I3-6100U 2.3GHz w/ 2x DDR3L-1600 4GB, +12V: 2.36AIntel® Core™ I7-6600U 2.6GHz w/ 2x DDR3L-1600 4GB, +12V: 2.27A
Température de fonctionnement	0°C~60°C (32°F~140°F)
Température d’entreposage	-20°C~80°C (-4°F~176°F)
Humidité relative	90% (non-condensing @60°C)
