IB908

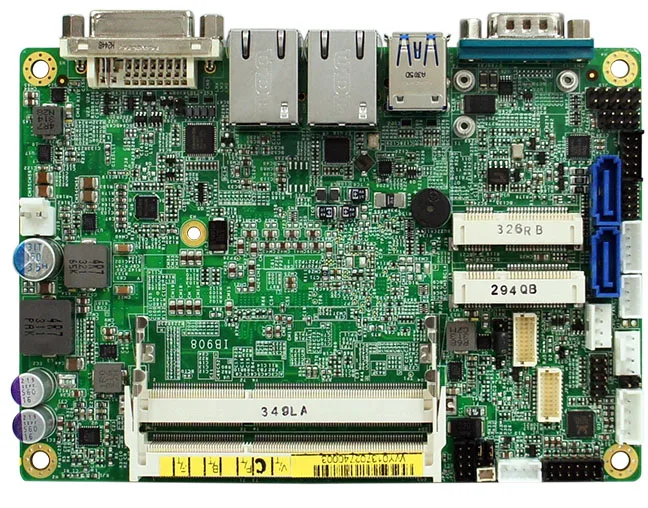

SBC 3.5-inch Disk-Size BGA1168 (MCP) socket compact — 4th Generation Intel Core Processor Family U-series
SBC 3.5-inch Disk-Size BGA1168 (MCP) socket compact — 4th Generation Intel Core Processor Family U-series. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Processeur | Intel® Core™ i7-4650U processor (1.7GHz) Intel® Core™i5-4300U processor (1.9GHz) Intel® Core™ i3-4010U processor (1.7GHz) Intel® Celeron® 2980U processor (1.6GHz) |
|---|---|
| Mémoire système | 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC) |
| Chipset système | Integratd in 4th Generation Intel® CoreTM i U-series processor |
| BIOS | AMI BIOS · SSD · 2x mSATA |
| Audio | 4th Generation Intel® CoreTM i U-series processor built-in High Definition Audio controller + Realtek ALC269-VC Codec w/class-D speaker amplifier |
| Réseau | Intel® I218V LAN PHY · Intel® I211AT PCI-E Gigabit LAN · Connector · 2x RJ-45 on board |
| USB | 2 ports on board (USB3.0) · Pin header for 4 ports (USB2.0) |
| Minuterie de surveillance | 256 levels |
| Surveillance matérielle | Yes |
| Emplacement d’extension | 2x Mini PCI-E (1x full-sized, 1x half-sized) |
| Chipset d’E/S | Nuvoton NCT6104D · 1x RS-232/422/485(Jumperless selection) 3x RS232, 2x SATA III |
| Autres | Digital I/O, +9V~ +24V DC-In, iSMART |
| Dimensions | 102mm x 147mm (4” x 5.8”) |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-40°F~167°F) |
| Humidité relative | 10%~90% (non-condensing) |
Caractéristiques
| Caractéristique 1 | On board 4th Generation Intel® Core™ i U-series Processor |
|---|---|
| Caractéristique 2 | 2x DDR3L-1600 SO-DIMM, Max 16GB |
| Caractéristique 3 | Supports DVI-I and 24bit dual channel LVDS |
| Caractéristique 4 | 2x Intel® PCI-E GbE LAN |
| Caractéristique 5 | Watchdog timer, Digital I/O, mSATA, iSMART |
| Caractéristique 6 | 2x USB 2.0, 2x USB 3.0, 2x COM, 2x SATA III |
| Caractéristique 7 | 2x Mini PCI-E slot |
Informations de commande
| IB908F | - 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I and LVDS(24-bit LVDS dual channel), mSATA, iSMART |
|---|---|
| IB908F-4650 | - with Intel® Core™ i7-4650U(1.7GHz) |
| IB908F-4300 | - with Intel® Core™ i5-4300U(1.9GHz) |
| IB908F-4010 | - with Intel® Core™ i3-4010U(1.7GHz) |
| HSIB908-BGA | - Heatsink for IB908 |
