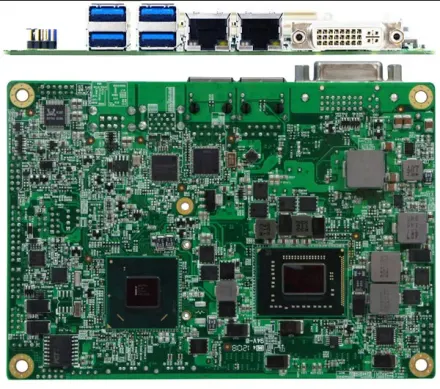

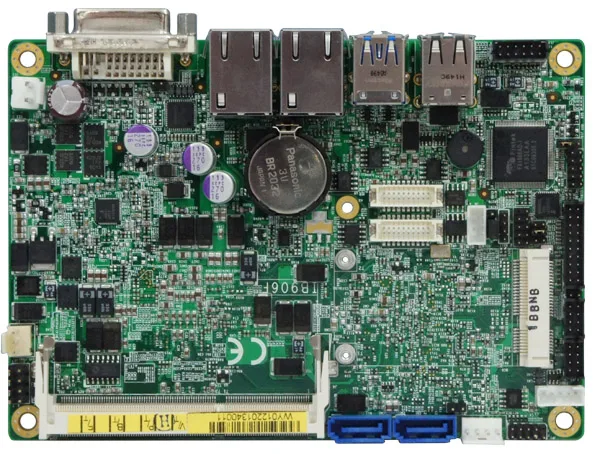

IB906

Name: IB906
Brand: IBASE Technology
SKU: IB906
Availability: InStock

Intel® Celeron® 807UE 3.5-inch Disk Size SBC w/ Intel® HM65 PCH

Intel® Celeron® 807UE 3.5-inch Disk Size SBC w/ Intel® HM65 PCH. Local warranty support and engineering customization available on request.

CPU

Intel Celeron® 807UE processor, 1.0GHz

MEMORY

One DDR3 SO-DIMM sockets, Max. 8GB, Non-ECC

STORAGE

-20°C~80°C (-4°F~176°F )

ETHERNET

Inte® 82579V Gigabit LAN PHY · Inte® 82583V PCI-E Gigabit LAN · 2x RJ-45 on board

P/N # IB906

20 ROWS

CPU	Intel Celeron® 807UE processor, 1.0GHz
Chipset	Intel® HM65 PCH
BIOS	AMI BIOS, ACPI supported
System Memory	One DDR3 SO-DIMM sockets, Max. 8GB, Non-ECC
Integrated VGA	Intel Celeron processor integrated Gfx Gen 5.75 · 1024MB shared memory · Supports VGA, DVI and 24-bit dual channel LVDS
LAN	Inte® 82579V Gigabit LAN PHY · Inte® 82583V PCI-E Gigabit LAN · 2x RJ-45 on board
Audio	Intel® HM65 built-in high definition audio controller with · Realtek ALC662 for 5.1 CH audio
LPC I/O	Fintek F81866AD-I I/O controller for 2x COM, 2x SATA III
Serial Ports	1x RS-232, 1x RS-232/422/485
Serial ATA	2x SATA III
USB	2 USB 3.0 ports on board · 6 USB 2.0 ports (2 ports on board, 4 ports via pin header)
Digtial I/O	Supports 4 in, 4out
Watchdog Timer	256 segments, 0, 1, 2...255 sec/min
Power Connector	+12V~24V DC in
Form Factor	3.5-inch Disk Size SBC
Dimensions	102mm x 147mm (4" x 5.8")
Max. Power Requirement	Intel® Celeron® 807UE 1.0 GHz · w/ 2GB DDR3-1333 · +12V: 1.8A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F )
Relative Humidity	10%~90% (non-condensing)
