IB905

Name: IB905
Brand: IBASE Technology
SKU: IB905
Availability: InStock

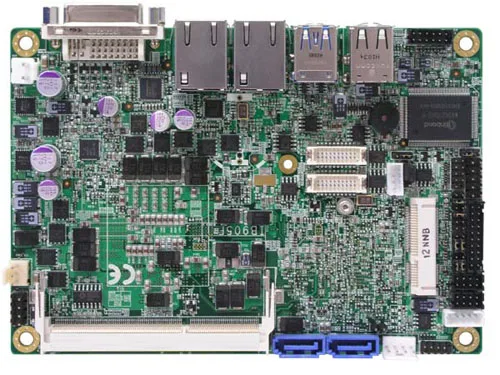

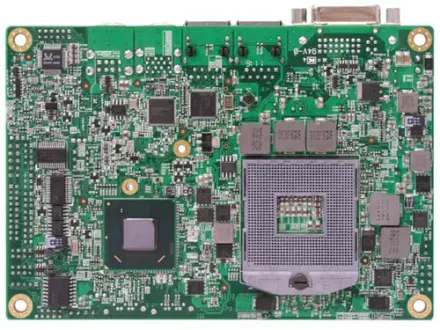

2nd Generation Intel® Core™ i7/ i5/ Celeron® 3.5-inch Disk Size SBC w/ Intel® QM67 Chipset

2nd Generation Intel® Core™ i7/ i5/ Celeron® 3.5-inch Disk Size SBC w/ Intel® QM67 Chipset. Local warranty support and engineering customization available on request.

STORAGE

-20°C~80°C (-4°F~176°F )

ETHERNET

Inte® 82579V Gigabit LAN PHY · Inte® 82583V PCI-E Gigabit LAN · 2x RJ-45 on board

OPERATING TEMP.

0°C~60°C (32°F~140°F)

POWER

+12V DC in · Expansion Slot · Mini PCI-E (half-sized)

REQUEST QUOTE DATASHEET (PDF)

P/N # IB905

Manual Introduction to Watchdog Timer

Specifications

17 ROWS

Chipset	Intel® QM67 Express Chipset
BIOS	AMI BIOS, ACPI supported
Integrated VGA	3rd Generation Inte® Core™ integrated graphics · Supports CRT, DVI-I and 24-bit dual channel LVDS
LAN	Inte® 82579V Gigabit LAN PHY · Inte® 82583V PCI-E Gigabit LAN · 2x RJ-45 on board
Audio	Intel® QM67 built-in high definition audio controller with · Realtek ALC892 for 5.1 CH audio
LPC I/O	Fintek F81865-I I/O controller supports 1x RS-232, 1x RS-232/422/485, 2x SATA III
Serial Ports	1x RS-232, 1x RS-232/422/485
Serial ATA	2x SATA III
USB	2 USB 3.0 ports on board · 6 USB 2.0 ports (2 ports on board, 4 ports via pin header) · Digtial I/O · Supports 4 in, 4out
Watchdog Timer	256 segments, 0, 1, 2...255 sec/min
Power Connector	+12V DC in · Expansion Slot · Mini PCI-E (half-sized)

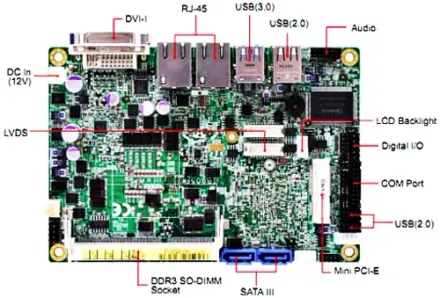

Edge Connectors	DVI-I, 2x RJ45, 2x USB 3.0, 2x USB 2.0 · Onboard Connectors/Headers · Digital I/O, 2x COM, 4x USB, DF13 for LVDS, · 2x SATA III , Mini PCI-E
Form Factor	3.5-inch Disk Size SBC
Dimensions	102mm x 147mm (4" x 5.8") · Max. Power Requirement
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F )
Relative Humidity	10%~90% (non-condensing)
