IB899

Name: IB899
Brand: IBASE Technology
SKU: IB899
Availability: InStock

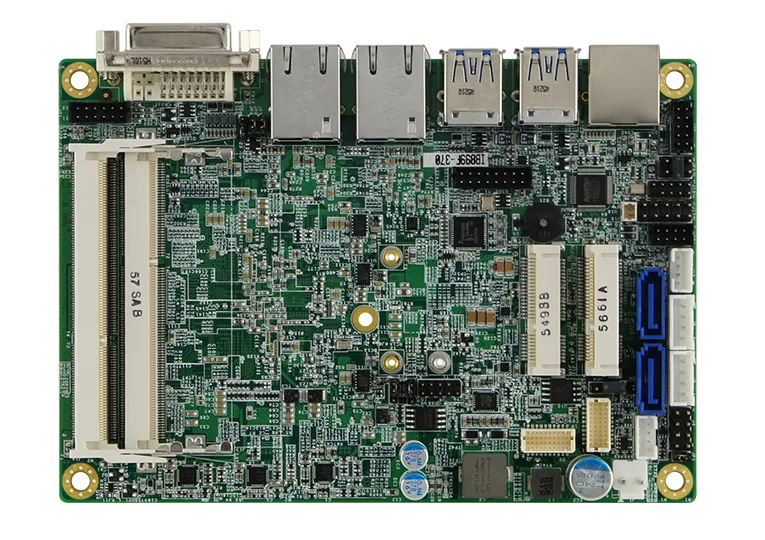

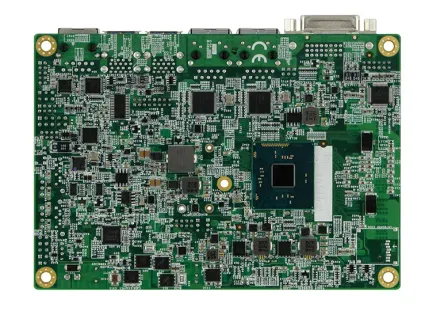

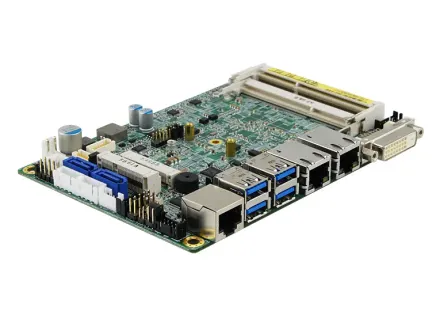

3.5" Single Board Computer with Intel® Pentium® / Celeron® Processors

3.5" Single Board Computer with Intel® Pentium® / Celeron® Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Pentium® N3710, up to 2.56GHz or Celeron® N3010, up to 2.24GHz

MEMORY

2x DDR3L SO-DIMM sockets, Max. 8GB

STORAGE

1x mSATA

DISPLAY

Supports DVI-D, CRT 24-bit dual-channel LVDS

x86 based 3.5 Single Board…Single Board Computer

P/N # IB899

24 ROWS

CPU	Intel® Pentium® N3710, up to 2.56GHz or Celeron® N3010, up to 2.24GHz
PCH	N/A
Memory	2x DDR3L SO-DIMM sockets, Max. 8GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x mSATA
Mini Type Slots	2x Mini PCI-E (1x full-size, 1x half-size)
Graphics Controller	Intel® Pentium® SoC integrated Gen-8 graphics
Video Output	Supports DVI-D, CRT 24-bit dual-channel LVDS
Ethernet	2x Intel® I211AT or I210AT Gigabit LAN
I/O Chipset	Nuvoton NCT5523D
Serial Port	1x RS232/422/485 (jumper-less selection)1x RS232
USB 2.0	2x USB 2.0 via pin header
USB 3.X	4x USB 3.0 on board
Serial ATA	2x SATA III
Audio	Intel® Pentium® SoC built-in HD audio controller + Realtek ALC888S codec
TPM	N/A
Others	Digital I/O, +9V~ +24V DC-in, iSMART
Dimensions (L x W)	102mm x 147mm (4“ x 5.8“)
Power Consumption	Intel® Pentium® N3700 1.6GHz w/ 2x 4GB DDR3L-1600, +12V: 1.5A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
