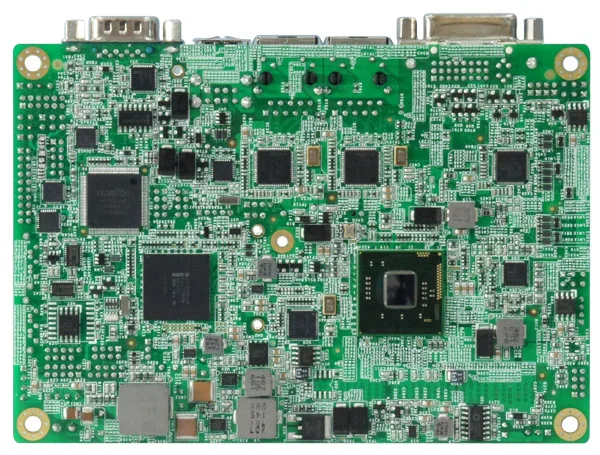

IB895

Name: IB895
Brand: IBASE Technology
SKU: IB895
Availability: InStock

IB895 - Intel® Atom™ D2550 / N2600 3.5-inch Disk Size w/ Intel® NM10 PCH

IB895 - Intel® Atom™ D2550 / N2600 3.5-inch Disk Size w/ Intel® NM10 PCH. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Intel® Atom™ Processor D2550 (1.86GHz, 1MB cache) · Intel® Atom™ Processor N2600 (1.6GHz, 1MB cache)

MÉMOIRE

One DDR3 SO-DIMM socket · Supports up to 4GB, Non ECC · VGA · Intel® Atom processor integrated · Supports DVI-D and 24-bit dual channel LVDS

ETHERNET

2x Intel 82583V PCI-E Gigabitl LAN · 2x RJ-45 on board

ALIMENTATION

+12V ~+24VDC-in

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # IB895

Documentation Introduction au chien de garde

Spécifications

18 LIGNES

Processeur	Intel® Atom™ Processor D2550 (1.86GHz, 1MB cache) · Intel® Atom™ Processor N2600 (1.6GHz, 1MB cache)
Chipset	Intel® NM10 PCH
BIOS	AMI BIOS, ACPI supported
Mémoire système	One DDR3 SO-DIMM socket · Supports up to 4GB, Non ECC · VGA · Intel® Atom processor integrated · Supports DVI-D and 24-bit dual channel LVDS
LAN	2x Intel 82583V PCI-E Gigabitl LAN · 2x RJ-45 on board
Audio	Chipset built-in audio controller · with Realtek ALC269QHD Codec with class-D speaker amplifier
E/S LPC	Nuvoton NCT6627UD · 1x KB, 1x Mouse, 3x RS232, · 1x RS-232/422/485(Jumperless selection), 2x SATA II
Ports série	One RS232 port and three RS232/422/485(jumperless selection)
Minuterie de surveillance	Generates system reset; 256 levels
E/S numériques	4 in / 4 out
USB	2 USB 2.0 ports on board · 4 USB 2.0 ports via pin header
Connecteur clavier et souris	PS/2 type
Autres caractéristiques	mSATA
Connecteur d’alimentation	+12V ~+24VDC-in
Format	3.5-inch SBC
Dimensions	102mm x 147mm (4" x 5.8")
Consommation électrique	Intel® Atom-D25501.86GHz · 2GB DDR3-1333 · +12V: 1.64A
Humidité relative	10%~90% (non-condensing)
