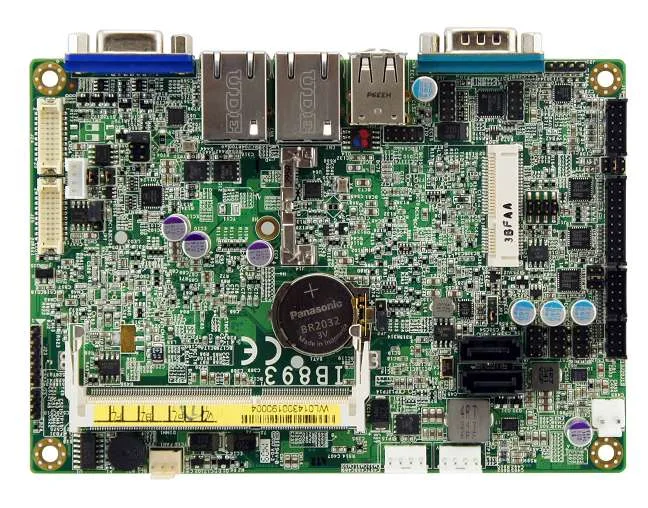

IB893

Name: IB893
Brand: IBASE Technology
SKU: IB893
Availability: InStock

IB893 Intel® Atom™ D525 3.5

IB893 Intel® Atom™ D525 3.5. Local warranty support and engineering customization available on request.

CPU

Intel® Atom™ D525 Processor · (1.8GHz, 1MB cache)

MEMORY

1x DDR3 SO-DIMM, Max. 4GB (Non-ECC)

STORAGE

N/A

DISPLAY

Support CRT and 24-bit dual channel LVDS

P/N # IB893

21 ROWS

CPU	Intel® Atom™ D525 Processor · (1.8GHz, 1MB cache)
System Memory	1x DDR3 SO-DIMM, Max. 4GB (Non-ECC)
System Chipset	Intel® 82801HBM I/O controller (ICH8M)
BIOS	AMI
Watchdog Timer	256 levels
SSD	N/A
H/W Monitor	Yes
Expansion Slots	1x Mini PCI-E
VGA Controller	Intel® Atom™ D525 Processor integrated GMA3150 graphics
VGA Memory	Max. shared memory – 224MB
Display Interface	Support CRT and 24-bit dual channel LVDS
LAN	2x Realtek RTL-8111G-CG PCI-E Gigabit LAN 2x RJ-45 on board
I/O Chipset	Nuvoton NCT6627UD · 3x RS232 · 1x RS-232/422/485(jumperless selection), · 2x SATA II, 1x KB, 1x Mouse
USB	2x ports on board · Pin headers for 6 ports (USB 2.0)
Audio	Intel® ICH8M built-in audio controller w/ Realtek ALC662-VD codec for 5.1CH
Others	Digital I/O, +12V DC In
Dimensions	102mm x 147mm (4" x 5.8")
Max. Power Requirement	Intel® Atom™ D525 1.80 GHz · w/ 1x 2GB DDR3-1333 · 0.23 A · 2.38 A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)

6 ROWS

Feature 1	Onboard Intel® Atom™ D525 DC Processor, 1.8GHz
Feature 2	1x DDR3 SO-DIMM, Max. 4GB
Feature 3	Supports CRT and LVDS
Feature 4	2x Realtek RTL-8111G-CG Gigabit LAN
Feature 5	Watchdog timer, Digital I/O
Feature 6	8x USB, 4x COM, 2x SATA II

2 ROWS

IB893	- Intel® Atom™ D525 1.8GHz Processor 3.5-inch Disk Size SBC w/ VGA and LVDS (24-bit dual channel), dual PCI-E Gigabit LAN
HSIB893-BGA	- Heatsink for IB893
