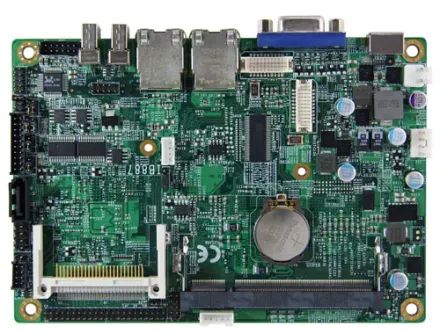

IB887

Name: IB887
Brand: IBASE Technology
SKU: IB887
Availability: InStock

Intel Atom N270 SBC, 3.5-inch SBC, (Atom) Embedded board.,945GSE chipset

Intel Atom N270 SBC, 3.5-inch SBC, (Atom) Embedded board.,945GSE chipset. Local warranty support and engineering customization available on request.

CPU

Intel Atom™ processor N270 at 1.6GHz, FSB533

MEMORY

One DDR2 SODIMM socket, single channel · Supports up to 1GB DDR2 400/533/667 SDRAM

STORAGE

One channel IDE; supports Ultra DMA 33 · 44-pin header x 1 (IDE1) · One CF socket Supporct CompactFlash · One SATA interface Support HDD SATA

ETHERNET

Dual Intel PCI-Express 82574L Gigabit LAN · RJ-45 on board

REQUEST QUOTE DATASHEET (PDF)

P/N # IB887

Manual Introduction to Watchdog Timer

Specifications

18 ROWS

CPU	Intel Atom™ processor N270 at 1.6GHz, FSB533
System Memory	One DDR2 SODIMM socket, single channel · Supports up to 1GB DDR2 400/533/667 SDRAM
BIOS	Award BIOS, ACPI supported
VGA	Intel 945GSE VGA GMA950 for CRT / LVDS with help of Onboard Chrontel CH7307 for DVI, Onboard Chrontel CH7308 for LVDS 24-bit DF13. · Supports dual display in combination of LVDS, onboard · DVI, CRT
LAN	Dual Intel PCI-Express 82574L Gigabit LAN · RJ-45 on board
Audio	ICH7M Chipset built-in Audio controller · ALC 662 HDA Codec, 6 channels · Supports 5.1-Channel (Line-in, Line-out & Microphone)
Storage Interface	One channel IDE; supports Ultra DMA 33 · 44-pin header x 1 (IDE1) · One CF socket Supporct CompactFlash · One SATA interface Support HDD SATA
Serial Ports	One RS-232, one RS-232/422/485
USB	Two ports on board · 2 ports via pin header · Supports Intel Atom™ processor, 1.6GHz speed, 533MHz FSB · One DDR2 SDRAM SO-DIMM; Supports.1GB memory · Intel 945GSE VGA for CRT / LVDS · Video Edge connector VGA/DB15F · Onboard Chrontel for DVI and LVDS24 · Dual Intel PCI-Express Gigabit LAN · 1x SATA, 4x USB 2.0, 2x COM, CF socket · Watchdog timer, Digital I/O
Watchdog Timer	Generates system reset; 256 levels
Digital I/O	4 in / 4 out
Keyboard and Mouse Connector	PS/2 type (combo)
Edge Connectors	PS/2 KB/Mouse, USB1/2, 2x RJ45, CRT
Pin/onboard Connectors	2x LVDS, 2x USB, IDE, CF, 2x COM, audio, SATA, DC-in
Power Connector	DC Power jack +12V DC-in
Form Factor	3.5-inch SBC
Dimensions	102mm x 147mm · Operating Temperature · 0°C~60°C (32°F~140°F) · Storage Temperature · -20°C~80°C (-7°F~176°F) · Relative Humidity · 10%~90% (non-condensing)
Cables Kits	- Intel Atom™ N270 3.5-inch Disk-Size SBC with 945GSE Chipset, Dual GbE, SATA, CRT, LVDS
