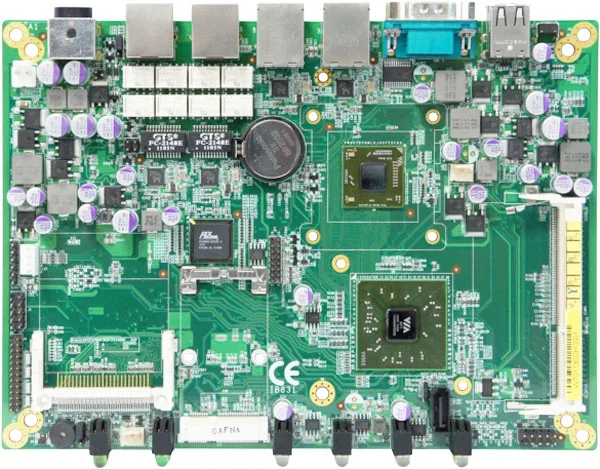

IB831
VIA Nano™ X2 Dual Core 5.25” Disk-Size SBC w/ VIA VX900 Chipset
VIA Nano™ X2 Dual Core 5.25” Disk-Size SBC w/ VIA VX900 Chipset. Local warranty support and engineering customization available on request.
CPU
VIA Nan™ X2 U4300 Dual Core processor, 1.2GHz
MEMORY
1x DDR3 SO-DIMM, Max. 2GB (Non-ECC)
STORAGE
CF socket
OPERATING TEMP.
0°C~60°C (32°F~140°F)
Specifications
20 ROWS
| CPU | VIA Nan™ X2 U4300 Dual Core processor, 1.2GHz |
|---|---|
| System Memory | 1x DDR3 SO-DIMM, Max. 2GB (Non-ECC) |
| System Chipset | VIA VX900 |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| SSD | CF socket |
| H/W Monitor | Yes |
| Expansion Slots | 1x Mini PCI-E (USB signal) |
| Controller | 4x Realtek RT8111E GbE |
| Bypass | LAN 1/2 |
| Connector | 4x RJ-45 on board |
| I/O Chipset | VX900, W83627DHG · COM1 via pin header · KB/mouse via pin header · (3 thermal inputs, 4 voltage monitor inputs and 4 fan headers) |
| USB | 2 ports on board (USB 2.0) |
| Audio | N/A |
| Others | 1x DC-In power connector |
| Dimensions | 203 x 146 mm (8” x 5.75”) |
| Power Requirement | VIA Nano X2 U4300@1.2GHz w/ DDR3 4GB/1333 · +12V: 1.68A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Features
7 ROWS
| Feature 1 | VIA Nano™ X2 Dual Core Processor, 1.2GHz on board |
|---|---|
| Feature 2 | 1x DDR3 SO-DIMM, up to 2 GB |
| Feature 3 | 4x Realtek Gigabit LAN, Optional LAN Bypass |
| Feature 4 | Integrated VIA VX900 VGA |
| Feature 5 | 2x USB 2.0, 1x COM, 1x SATA II |
| Feature 6 | 1x Mini PCI-E, 1x CF socket |
| Feature 7 | Watchdog timer |
I/O — Rear panel
Front access
Where the IB831 is deployed
USE CASE
OEM integration
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
USE CASE
Industrial control
PLC-adjacent controllers, motion control, and machine-tending applications.
USE CASE
Embedded kiosks
Behind-display compute for purpose-built kiosk and terminal hardware.
USE CASE
Test & measurement
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
