IB500

Name: IB500
Brand: IBASE Technology
SKU: IB500
Availability: InStock

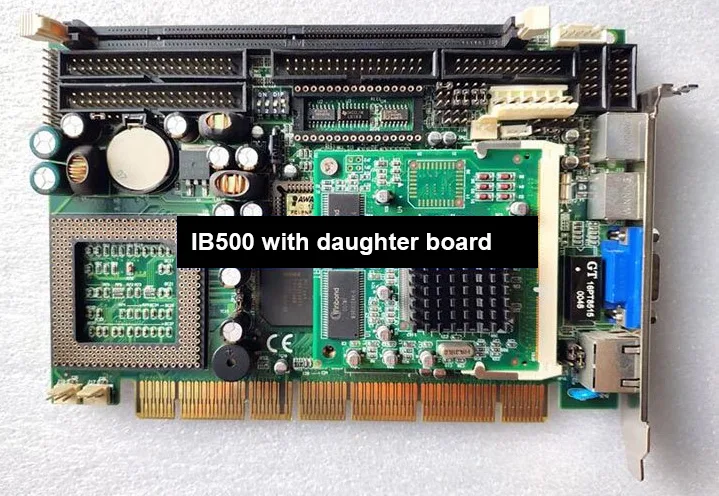

IB500 - PISA SBC for MMX Processors Compatible to AMD or INTEL or CYRIS

IB500 - PISA SBC for MMX Processors Compatible to AMD or INTEL or CYRIS. Local warranty support and engineering customization available on request.

CPU

Intel Pentium Processors with MMX Technology AMD K6/K6-2, Cyrix MII; 90MHz~400MHz

MEMORY

One 168-pin DIMM socket supports SDRAM modules for up to 256MB

STORAGE

-20°C~80°C (-4°F~176°F)

OPERATING TEMP.

0C~60C (32F~140F)

P/N # IB500

25 ROWS

BIOS	Award 2Mbit Flash BIOS
Cache	512K Level-2 cache
Chipset	Intel 430TX PCIset
CPU	Intel Pentium Processors with MMX Technology AMD K6/K6-2, Cyrix MII; 90MHz~400MHz
CPU Front Side Bus	66MHz
CPU Socket	Socket 7
Dimensions	185mm x 126mm (7.287" x 4.978")
FDD interface	Supports up to two floppy disk drives: 3.5"(720KB, 1.44MB or 2.88MB) and/or 5.25"(360KB or 1.2MB); with 3 Mode support
Form Factor	Half size, PISA
Hardware Monitoring	Winbond W83781D IC monitors system temperature/voltage status
IDE interface	Two enhanced IDE interface supports 4 IDE devices including UDMA/33, PIO mode 4 and bus master mode
IrDA	Pin header
Keyboard Connector	PS/2 type
MicroPCI Interface	One 144-pin MicroPCI socket for optional MicroPCI cards
Mouse Connector	PS/2 type
Operating Temperature	0C~60C (32F~140F)
Parallel Port	One parallel port supports SPP/EPP/ECP
Serial Ports	One RS-232/422/485 and one RS-232
Solid State Disk Interface	One SSD socket supports 2MB~144MB M-Systems DiskOnChip flash disk
Super I/O	Winbond W83977 chipset
System memory	One 168-pin DIMM socket supports SDRAM modules for up to 256MB
USB	Pin header for 2 USB ports
Watchdog Timer	Generates system reset; 16 levels
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
