IB200

Name: IB200
Brand: IBASE Technology
SKU: IB200
Availability: InStock

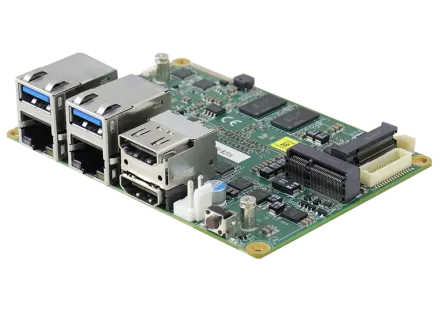

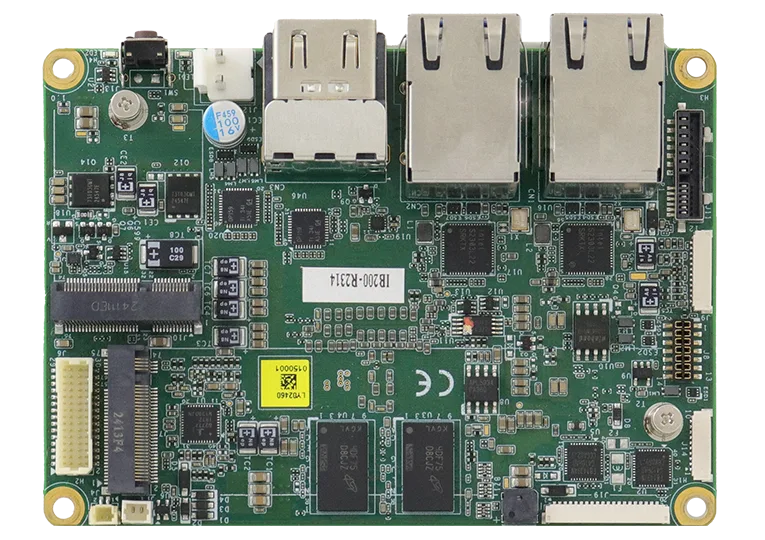

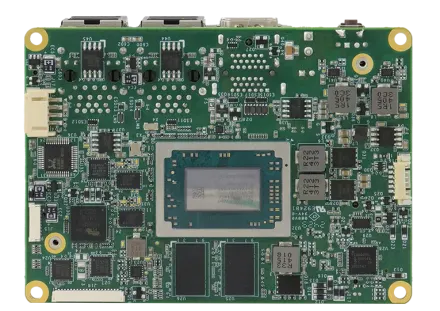

2.5" Single Board Computer with AMD Ryzen™ Embedded R2000 Series

2.5" Single Board Computer with AMD Ryzen™ Embedded R2000 Series. Local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded R2000 Series on board

MEMORY

Onboard DDR4 memory, Max. 8GB

STORAGE

1x SATA III1x M.2 (M-Key, type 2280)

DISPLAY

2x HDMI (2.0b), 1x 24-bit dual channel LVDS

x86 based 2.5 Single Board…Single Board Computer

P/N # IB200

24 ROWS

CPU	AMD Ryzen™ Embedded R2000 Series on board
PCH	N/A
Memory	Onboard DDR4 memory, Max. 8GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x SATA III1x M.2 (M-Key, type 2280)
Mini Type Slots	1x M.2 (E-Key, type 2230)
Graphics Controller	AMD Radeon™ Vega integrated
Video Output	2x HDMI (2.0b), 1x 24-bit dual channel LVDS
Ethernet	2x Intel® I226IT 2.5 Gigabit LAN
I/O Chipset	Fintek F81966AB-I
Serial Port	COM1 / COM2 : RS-232/422/485 (configurable)COM3 / COM4 : RS232
USB 2.0	3x USB 2.0 (pin header)
USB 3.X	2x USB 3.2 Gen2 (10Gbps)
Serial ATA	1x SATA III
Audio	Built-in audio w/ Realtek audio codec ALC888S-VD2-GR
TPM	2.0
Others	Digital I/O(4-in/ 4-out), Watchdog Timer
Dimensions (L x W)	100mm x 72mm
Power Consumption	AMD Ryzen™ Embedded R2514 3.35GHz w/ 1x 8GB DDR4-3200 (Onboard)+12V: ~2.9AAMD Ryzen™ Embedded R2312 2.1GHz w/ 1x 8GB DDR4-3200 (Onboard)+12V: ~1.8A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
