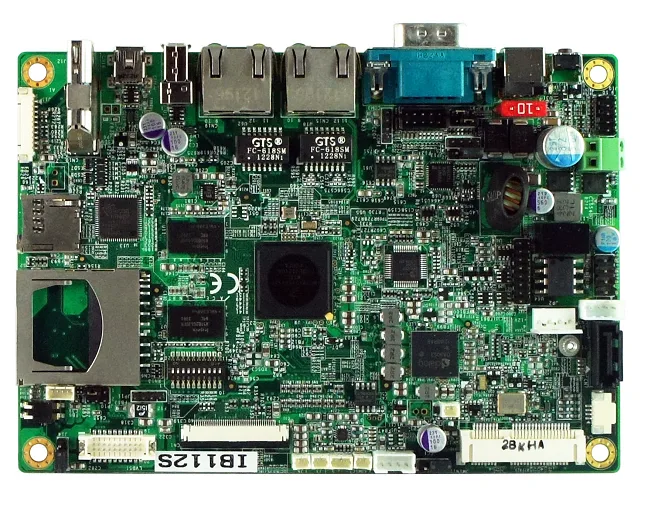

IB112

Name: IB112
Brand: IBASE Technology
SKU: IB112
Availability: InStock

ARM-Based SBC with NXP i.MX536 Cortex-A8 Dual Core 800MHz SoC RISC Platform

ARM-Based SBC with NXP i.MX536 Cortex-A8 Dual Core 800MHz SoC RISC Platform. Local warranty support and engineering customization available on request.

CPU

NXP Cortex™-A8 i.MX536 800MHz

MEMORY

1GB DDR3 on board

DISPLAY

HDMI (IB112F/IB112S/IB112T) · 18/24 bit single channel LVDS (up to 1366x768), VGA ( IB112F)

ETHERNET

1st LAN: 10/100 Base-T Ethernet (Gb LAN)

REQUEST QUOTE DATASHEET (PDF)

P/N # IB112

Manual Introduction to Watchdog Timer

Specifications

23 ROWS

Form Factor	3.5" Disk-Size SBC
CPU	NXP Cortex™-A8 i.MX536 800MHz
System Memory	1GB DDR3 on board
Data Memory	eMMC (IB112T:8GB; IB112S: 16GB) on board · SD socket (up to 32GB), · micro SD cocket ( up to 32GB)
Display	HDMI (IB112F/IB112S/IB112T) · 18/24 bit single channel LVDS (up to 1366x768), VGA ( IB112F)
Video Codec	Decode: 1080p, 30fps
Encode	720p, 30fps
LAN	1st LAN: 10/100 Base-T Ethernet (Gb LAN)
2nd LAN	10/100 Base-T Ethernet (IB112S)
Touch	Resistive touch IC (4-wires), on board USB/ I2C header on board ( for capciative touch)
Audio	AAudio pin header (1x microphone, 1x speaker)
RTC	RTC IC on board
Watchdog	256 Levels
NVRAM	32K NVRAM on board (IB112S)
Edge I/O	1x 2nd 10/100 LAN ( IB112S) · 1x USB 2.0 Host (Type-A) · 1x USB OTG (mini-USB Type-B) · 1x COM RS-232/422/485 · 1x SD socket ( up to 32GB) · 1x DC-in jack · 1x HDMI (Type-A) · 1x Reset button
Headers and Expansion Slots	Headers: · 8x GPIO pin header (IB112F/IB112S) · 1x VGA pin header (112F) · 1x Debug port pin header · 1x USB2.0 host box header · 1x I²C pin header · 1x RS232 pin header · 1x 4-wire resistive touch pin header · 2x CAN Bus 2.0B (w/ isolation) pin headers (IB112S/IB112T) · 1x Dual channel LVDS box header (supports full HD) · 1x Audio pin header (1x microphone, 1x speaker) · 1x SATA header (IB112F)
Slots	1x Full-size Mini PCI-E (w/ USB interface only)
Power	12V~24V DC-in
Dimensions	102mm x 147mm (4” x 5.8”)
Devices	WiFi / GPS / 3G module (option)
Software Support	Ubuntu Linux 10.04(kernel 2.6)/ Android 2.3.4/ WINCE7
Operating Temperature	0°C~ 60°C
Relative Humidity	10%~90% (non-condensing)

Features

7 ROWS

Feature 1	NXP ARM Cortex-A8, 800Mhz CPU
Feature 2	Supports DC 12V~24V input voltage
Feature 3	1GB DDR3, eMMC (option) on board
Feature 4	Supports Resistive touch header (4-wires), and I2C/USB header for capacitive touch
Feature 5	Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
Feature 6	Supports COM, CAN (option), USB-OTG, SD/micro-SD card, VGA, HDMI, LVDS
Feature 7	Supports rich I/O internface for BOM customization

Ordering Information

4 ROWS

IB112	- 3,5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), DDR3 1GB, 10/100 LAN, SD, Micro-SD, 3 COM Ports, Mini PCI-E(x1) slot
IB112F	- 3,5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), DDR3 1GB, 10/100 LAN, SD, Micro-SD, 3 COM Ports, Mini PCI-E(x1) slot, HDMI, 8x GPIO, VGA, 32K NVRAM, SATA
IB112S	-
IB112T	- 3,5-inch SBC w/ Industrial-Grade Freescale i.MX536 (800Mhz), DDR3 1GB, 10/100 LAN, SD, Micro-SD, 3 COM Ports, Mini PCIe(x1) slot, HDMI, 2x CAN, 8GB eMM
