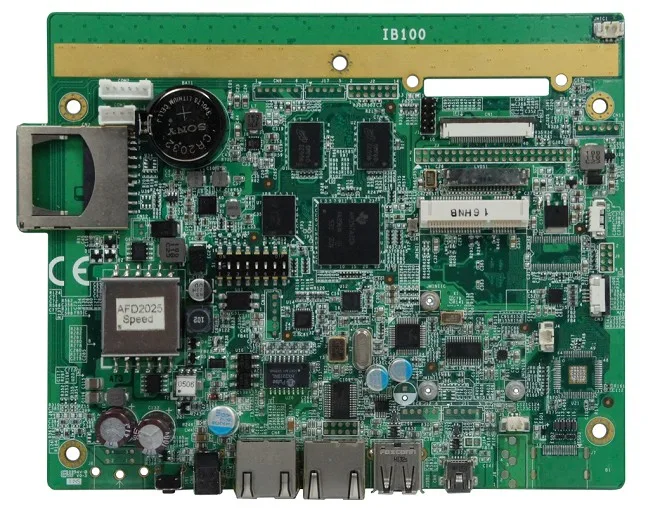

IB100
Low-Power SBC with TI AM3517 Cortex A8 600MHz SoC RISC Platform
Low-Power SBC with TI AM3517 Cortex A8 600MHz SoC RISC Platform. Local warranty support and engineering customization available on request.
CPU
TI Cortex™-A8 AM3517 600MHz
MEMORY
256MB DDR2 on board
DISPLAY
TTL, up to 1280 x 720
ETHERNET
10/100 Base-T fast Ethernet w/ PoE (820.3af)
Specifications
22 ROWS
| Form Factor | Disk-Size SBC |
|---|---|
| CPU | TI Cortex™-A8 AM3517 600MHz |
| System Memory | 256MB DDR2 on board |
| Data Memory | SD socket (up to 32GB) |
| POE/POE+ | 802.3af, 15.4 watts. |
| Display | TTL, up to 1280 x 720 |
| LAN | 10/100 Base-T fast Ethernet w/ PoE (820.3af) |
| Touch | Four wires resistive touch IC for RTP |
| USB | headers for CPT |
| Audio | Audio pin header (1x microphone,2x speaker) |
| Watchdog | 256 Levels |
| Edge I/O | 1x Fast Ethernet w/ PoE (RJ45 connector) · 1x USB Type-A · 1x USB_OTG · 1x RS-232 port (RJ45 connector) · 1x SD slot · 1x Reset button |
| Headers and Expansion Slots | 1x TTL connector · 1x Debug port header · 1x Audio pin header set (1x microphone, 2x speaker) · 1x I²C connector (reserved ) |
| 1x Battery | BR2032 with socket · 1x 4 wire resistive touch header |
| Slots | 1x Full-size Mini PCI-E(x1) with USB signal only |
| Power | 12V DC or POE |
| Dimensions | 131mm x 160mm (5.16” x 6.3”) |
| Devices | WIFI/BT/3G module (option |
| Software Support | Android 2.3/ Linux kernel V3.0 / WinCE 6.0 |
| Operating Temperature | 0°C~ 50°C (32°F ~ 122°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE/FCC Class A |
Features
6 ROWS
| Feature 1 | TI ARM Cortex-A8, AM3517 600Mhz |
|---|---|
| Feature 2 | Supports 12V DC input and PoE (802.3af) |
| Feature 3 | 256MB DDR2 and SD socket for expansion |
| Feature 4 | Resistive touch panel (4-wires) and capacitive touch interface via USB |
| Feature 5 | Supports the embedded I/O as COM, I2C, USB-OTG, Audio and Ethernet |
| Feature 6 | Supports the mini-PCIe (only USB signal) for the wireless connectivity |
Ordering Information
1 ROWS
| IB100-MRS | - RISC, TI AM3517 CPU(Cortex-A8, 600MHz) , w/256M DDR2 Memory, 512MB NAND flash, Single CH TTL, Mini PCI-E (with USB function only) |
|---|
I/O — Rear panel
Front access
Where the IB100 is deployed
USE CASE
OEM integration
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
USE CASE
Industrial control
PLC-adjacent controllers, motion control, and machine-tending applications.
USE CASE
Embedded kiosks
Behind-display compute for purpose-built kiosk and terminal hardware.
USE CASE
Test & measurement
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
