PX-20S3

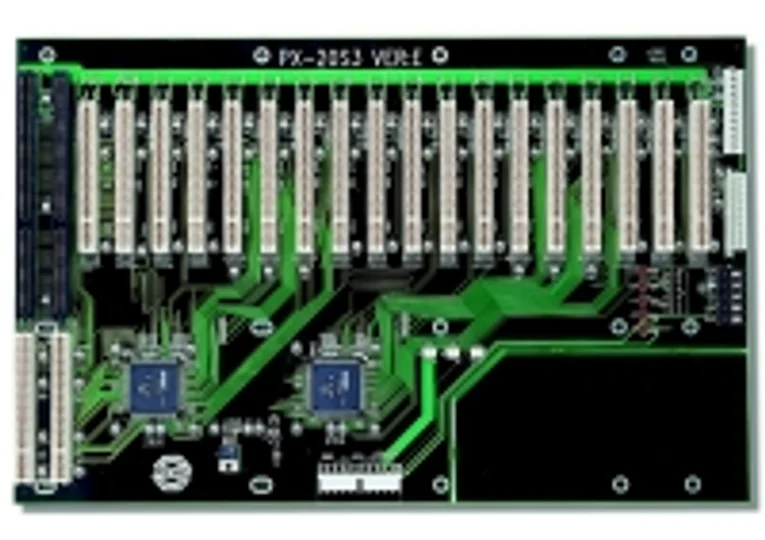

20-slot passive backplane — 18x PCI (32-bit), 2x PICMG 1.0
20-slot passive backplane — 18x PCI (32-bit), 2x PICMG 1.0. Local warranty support and engineering customization available on request.
SLOTS
20 total — 18x PCI (32-bit), 2x PICMG 1.0
BUS
PICMG Bridged Passive
PICMG BackplanePassive Backplane
P/N # PX-20S3
Specifications
7 ROWS
| Bus Type | PICMG Bridged Passive |
|---|---|
| Slot Configuration | 20 total — 18x PCI (32-bit), 2x PICMG 1.0 |
| Dimensions | 263.6mm × 415.4mm (10.4" × 16.4") |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | FCC, CE Class A, UL, CSA, TUV |
I/O — Rear panel
Front access
Where the PX-20S3 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →PX-20S3 datasheetAvailable on request
- REQUEST →PX-20S3 user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
