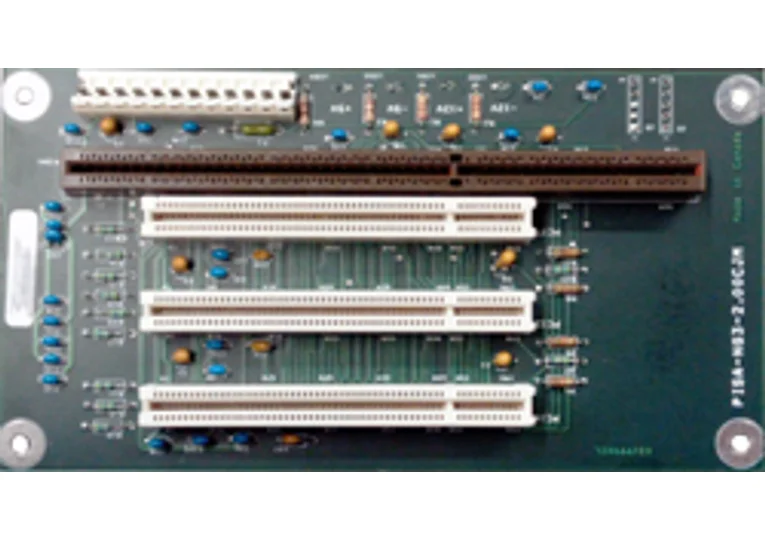

PISA-NG3 2.0
4-slot passive backplane — 1x PISA, 3x PCI (32-bit)
4-slot passive backplane — 1x PISA, 3x PCI (32-bit). Local warranty support and engineering customization available on request.
SLOTS
4 total — 1x PISA, 3x PCI (32-bit)
BUS
PCI-ISA Passive
PICMG BackplanePassive Backplane
P/N # PISA-NG3 2.0
Specifications
2 ROWS
| Bus Type | PCI-ISA Passive |
|---|---|
| Slot Configuration | 4 total — 1x PISA, 3x PCI (32-bit) |
I/O — Rear panel
Front access
Where the PISA-NG3 2.0 is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- REQUEST →PISA-NG3 2.0 datasheetAvailable on request
- REQUEST →PISA-NG3 2.0 user manualAvailable on request
- REQUEST →Driver packageAvailable on request
- REQUEST →Declaration of Conformity (CE)Available on request
