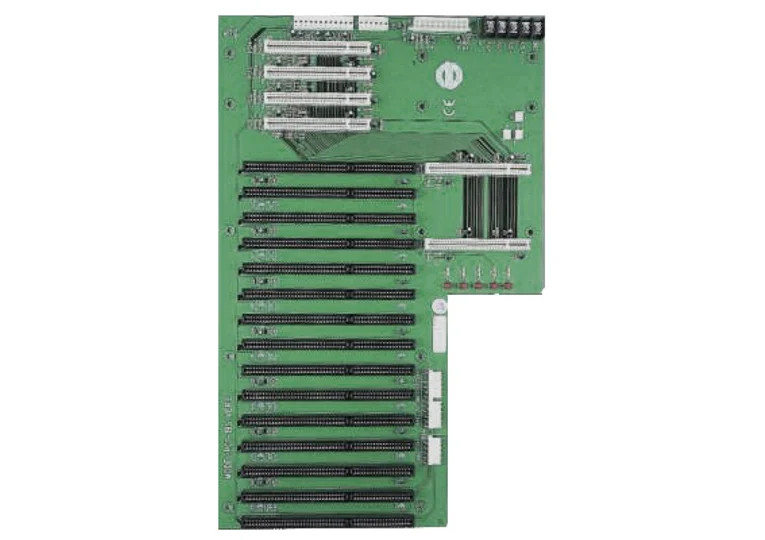

PCI-19S
20-slot passive backplane — 4x PCI, 13x ISA, 2x PICMG 1.0
20-slot passive backplane — 4x PCI, 13x ISA, 2x PICMG 1.0. Local warranty support and engineering customization available on request.
SLOTS
20 total — 4x PCI, 13x ISA, 2x PICMG 1.0
BUS
PICMG Passive
PICMG BackplanePassive Backplane
P/N # PCI-19S
Specifications
2 ROWS
| Bus Type | PICMG Passive |
|---|---|
| Slot Configuration | 20 total — 4x PCI, 13x ISA, 2x PICMG 1.0 |
I/O — Rear panel
Front access
Where the PCI-19S is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
