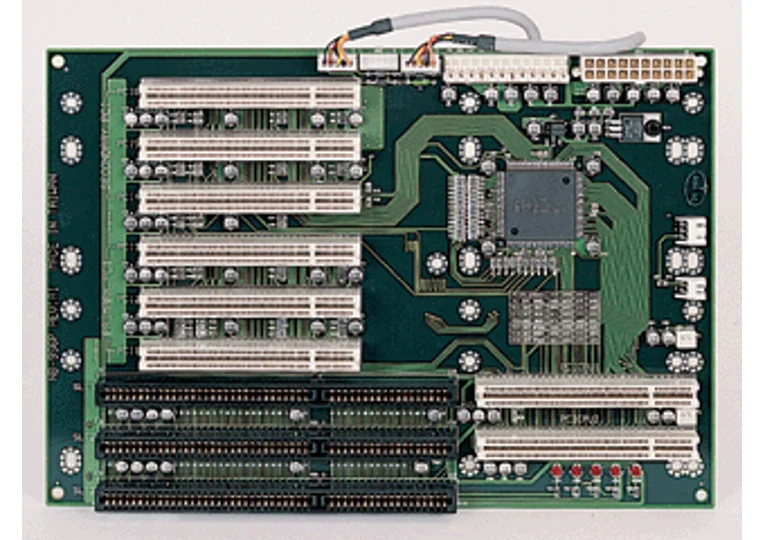

NB-9S6P
9-slot active backplane — 3x ISA (2x PICMG in-lined), 6x PCI
9-slot active backplane — 3x ISA (2x PICMG in-lined), 6x PCI. Local warranty support and engineering customization available on request.
SLOTS
9 total — 3x ISA (2x PICMG in-lined), 6x PCI
BUS
PICMG/PCI/ISA Active
PICMG BackplaneActive Backplane
P/N # NB-9S6P
Specifications
2 ROWS
| Bus Type | PICMG/PCI/ISA Active |
|---|---|
| Slot Configuration | 9 total — 3x ISA (2x PICMG in-lined), 6x PCI |
I/O — Rear panel
Front access
Where the NB-9S6P is deployed
USE CASE
PICMG system builds
Backplane for PICMG 1.0/1.3 CPU cards already in the catalog (IB740, IB835, IB840, IB936, IB945, IB965, IB981).
USE CASE
Legacy system support
Drop-in replacement backplane for fielded industrial PC chassis.
USE CASE
Expansion & upgrades
Add ISA, PCI or PCIe expansion capacity to an existing PICMG-based system.
