IB981

Name: IB981
Brand: IBASE Technology
SKU: IB981
Availability: InStock

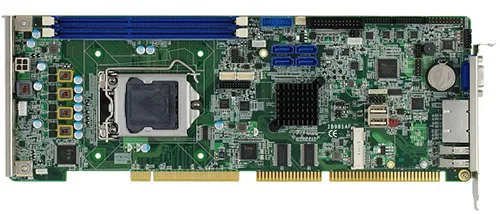

IB981 - 4th Gen Intel® Core™ PICMG® 1.0 Full-Size CPU Card w/ Intel® Q87 PCH Support i7/i5/i3 /Pentium® /Celeron®

IB981 - 4th Gen Intel® Core™ PICMG® 1.0 Full-Size CPU Card w/ Intel® Q87 PCH Support i7/i5/i3 /Pentium® /Celeron®. Local warranty support and engineering customization available on request.

CPU

LGA1150 for 4th Gen Intel® Core™ i7/i5/i3/ Pentium® / · Celeron® proces-sor

MEMORY

2x DDR3/ DDR3L-1600 DIMM, Max 16GB (ECC compatible)

STORAGE

N/A

DISPLAY

Supports VGA, DVI-D 24-bit dual channel LVDS interface

REQUEST QUOTE REQUEST DATASHEET

P/N # IB981

Specifications

28 ROWS

CPU	LGA1150 for 4th Gen Intel® Core™ i7/i5/i3/ Pentium® / · Celeron® proces-sor
System Memory	2x DDR3/ DDR3L-1600 DIMM, Max 16GB (ECC compatible)
System Chipset	IB981AF-C226: Intel® C226 PCH
IB981AF	Intel® Q87 PCH
IB981F	Intel® H81 PCH
BIOS	AMI
Display Interface	Supports VGA, DVI-D 24-bit dual channel LVDS interface
Watchdog Timer	256 levels
VGA Memory	Max. shared memory – 1024MB
SSD	N/A
LAN Controller	Intel® I217LM (IB981AF) / I217V (IB981F) Gigabit LAN PHY · Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
H/W Monitor	Yes

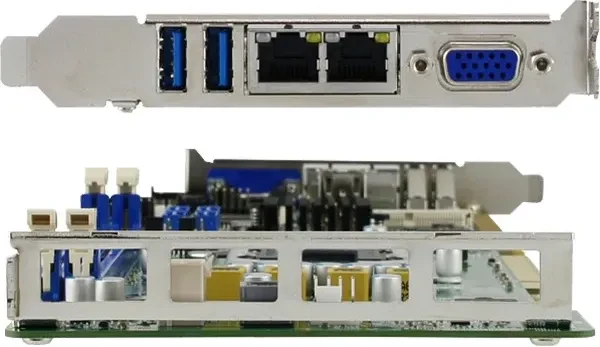

LAN Connector	2x RJ-45 on board
Expansion Slots	1x Mini PCI-E
I/O Chipset	Fintek F81846AD-I
VGA Controller	4th Gen Intel® Core™ i7/i5/i3 processors integrated graphics
USB	2x USB 2.0 and 2x USB 3.0 on board · 2x USB 2.0 and 2x USB 3.0 via pin header · 1x USB 2.0 via Mini PCI-E
Serial ATA	IB981AF: 4 port SATA 3.0
IB981F	2 port SATA 3.0
Audio	Intel® Q87 PCH built-in HD audio controller + · Realtek ALC662 w/ 5.1 channel
Others	Digital I/O (4-in/4-out), iSMART · RAID, TPM 2.0, iAMT [IB981AF only]
Dimensions	338mm x 126mm(13.31” x 4.96”)
Max. Power Requirement	Intel® i7-4770S, 3.10GHz w/ 2x DDR3-1600 8GB
+12V	3.34A, +5V: 2.04A
+5VBS	0.25A, +3.3V: 0.03A
Operating Temperature	0°C ~60°C (32°F ~ 140°F)
Storage Temperature	-20°C ~80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing@60°C)

Features

8 ROWS

Feature 1	4th Gen Intel® Core™ i7/i5/i3/ Pentium® / Celeron® processor, up to 4.0 GHz
Feature 2	2x DDR3 / DDR3L-1600 DIMM, Max. 16GB, ECC
Feature 3	Intel® processor integrated graphics, supports VGA, DVI-D
Feature 4	24-bit dual channel LVDS
Feature 5	2x Intel® PCI-E Gigabit LAN
Feature 6	4x USB 3.0, 4x USB 2.0, 4x COM, 4x SATA III
Feature 7	1x Mini PCI-E slot(supports mSATA)
Feature 8	Watchdog timer, Digital I/O, iSMART, TPM 2.0 , iAMT

Ordering Information

3 ROWS

IB981AF-C226	- LGA1150 C226 Full size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN, iSMART, TPM(2.0), RAID
IB981AF	- LGA1150 Q87 Full size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN, iSMART, TPM(2.0), RAID
IB981F	- LGA1150 H81 Full size CPU Card w/ VGA, DVI-D, 24-bit LVDS, dual Gigabit LAN, iSMART
