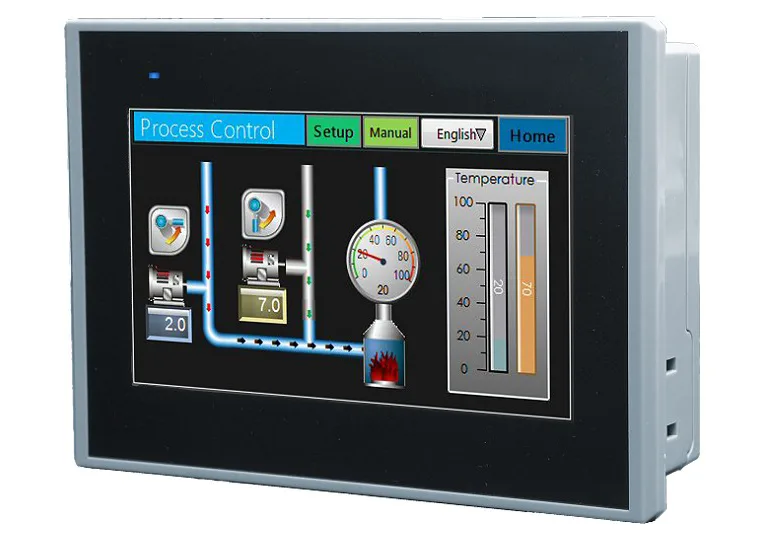

IPR-P04F-N
Industrial HMI with TI ARM® Corte™ A8, Sitara™ AM3352 (1GHz) Processor
Industrial HMI with TI ARM® Corte™ A8, Sitara™ AM3352 (1GHz) Processor. Local warranty support and engineering customization available on request.
CPU
ARM Cortex-A8 (1GHz)
MEMORY
4G eMMC
STORAGE
-20 ~ 60°C
DISPLAY
4.3" TFT
IPR Series Industrial HMIARM based HMI
P/N # IPR-P04F-N
Specifications
31 ROWS
| Display type | 4.3" TFT |
|---|---|
| Resolution | 480 x 272 |
| Display area | 154.08mm x 85.92mm |
| Color depth | 64K |
| Backlight type | LED |
| Brightness | 330 cd/m² |
| Backlight lifetime | 20,000 hours |
| Viewing angle (H°/V°) | 140/120 |
| Contrast | 500:1 |
| Touch panel | 4-wire resistive type |
| CPU | ARM Cortex-A8 (1GHz) |
| Flash memory | 4G eMMC |
| DRAM | 512M Bytes |
| FRAM (non-volatile) | 32K Bytes |
| RTC | Yes |
| COM1 | 1x RS232, 1x RS422/485 or CAN bus (option) |
| COM2 | N/A |
| COM3 | N/A |
| Ethernet | 1 x 10/100 Mbit |
| USB | 1x Host, 1x Device |
| Memory card | N/A |
| Power supply voltag | DC 24V ±20%, isolated power |
| Power consumption | 6W |
| Operation temperature | 0 ~ 45°C |
| Storage temperature | -20 ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) @ 40°C |
| Waterproof (front) | IP65 |
| ESD Protection | N/A |
| Dimension | 127.7mm(W) x 89.7mm(H) x 36.7mm(D) |
| Cut-out | 119.3mm(W) x 81.3mm(H) |
| Weight(Net) | 0.25 Kg |
I/O — Rear panel
Front access
Where the IPR-P04F-N is deployed
USE CASE
HMI / operator terminals
Plant-floor human-machine interfaces for SCADA and process visualization.
USE CASE
Medical & lab instruments
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
USE CASE
Self-service kiosks
Public-facing terminals for wayfinding, ticketing, and interactive displays.
USE CASE
Outdoor / transportation HMI
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
