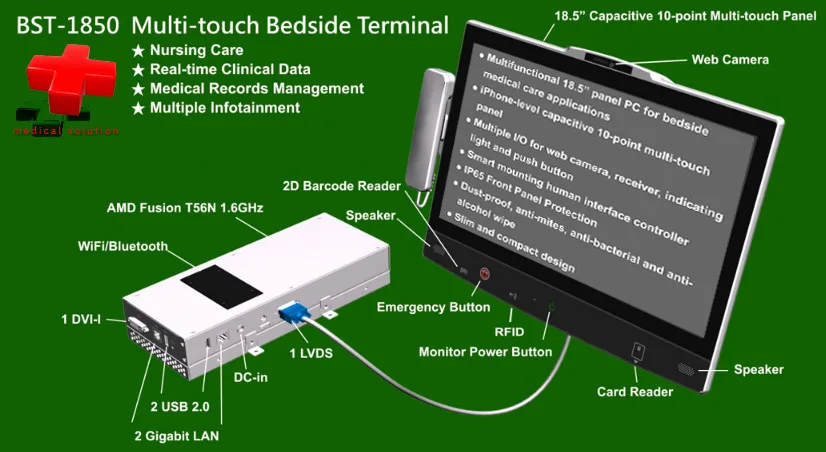

BST1850
18.5-inch Capacitive Multi-Touch Panel PC for Bedside Terminal made for medical application in mind
18.5-inch Capacitive Multi-Touch Panel PC for Bedside Terminal made for medical application in mind. Local warranty support and engineering customization available on request.
Specifications
| LCD Touch Panel Display | Touch panel function (Capacitance), · 18.5-inch wide, LCD (16:9), 1366 x 768 dots |
|---|---|
| CPU / Chipset | AMD Fusion T56N 1.6GHz‧ · AMD A55E *Changing to the power saving type CPU is possible |
| Storage | 16GB SSD * High-capacity by HDD is possible |
| Memory | 2GB DDR3-1066 |
| I/O Device | Card reader, RFID, 2D barcode reader, fingerprint authentication (option) |
| Interface | IEEE802.11n/b/g standard wireless LAN, · 2x LAN, Bluetooth, 4x USB2.0 (indicator2 / Main body 2), · 2x SATA2.0, Audio (IN x 1, OUT x 2) |
| External Dimensions / Weight | Indicator : 458mm(W) x 355mm(H) x 36mm(D), Approx. 4.5kg · Main body : 130mm(W) x 300mm(H) x 60mm(D), Approx. 2.5kg (AC adapter is not included.) |
| Power Supply | 12VDC ± 5% (AC adapter is included.) |
I/O — Rear panel
Front access
Where the BST1850 is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
