PI800

Name: PI800
Brand: IBASE Technology
SKU: PI800
Availability: InStock

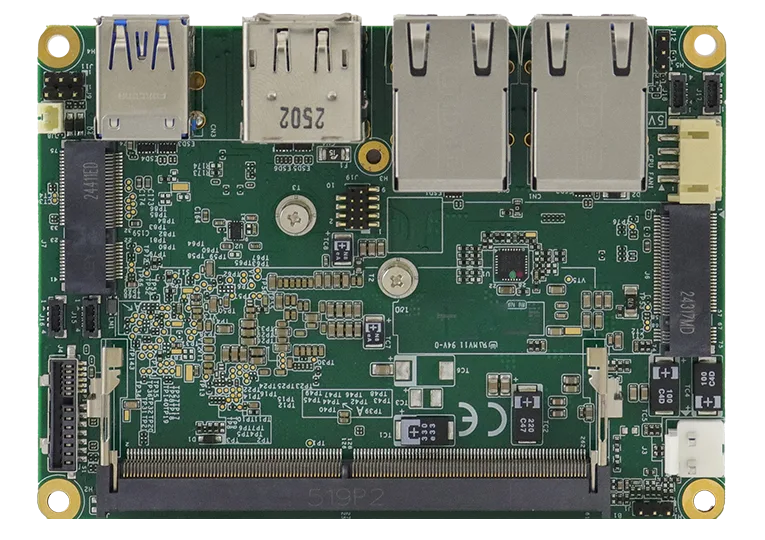

PICO-ITX Motherboard with Intel® Atom® x7000RE Series Processors (Amston Lake)

PICO-ITX Motherboard with Intel® Atom® x7000RE Series Processors (Amston Lake). Local warranty support and engineering customization available on request.

CPU

Intel® Atom® 8-Core x7835RE SoC

MEMORY

1x DDR5-4800 MHz, Max. 16GB

STORAGE

1x M.2 M-Key 2242 (SATA)

DISPLAY

1x HDMI (2.0b)1x DisplayPort 1.2a (DP++)

PICO ITX MotherboardMotherboard

REQUEST QUOTE REQUEST DATASHEET

P/N # PI800

Driver Introduction to Watchdog Timer

Specifications

25 ROWS

CPU Socket	Intel® Atom® 8-Core x7835RE SoC
PCH	N/A
Memory	1x DDR5-4800 MHz, Max. 16GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 M-Key 2242 (SATA)
Expansion Slots	1x M.2 (M2242), 1x M.2 (E2230)
Mini Type Slots	1x M.2 (M-Key, type:2242, supports SATA & PCIe(x1) signal)1x M.2 (E-Key, type: 2230, supports USB 2.0 & PCIe(x1) signal)
Graphics Controller	Intel® SoC integrated graphics

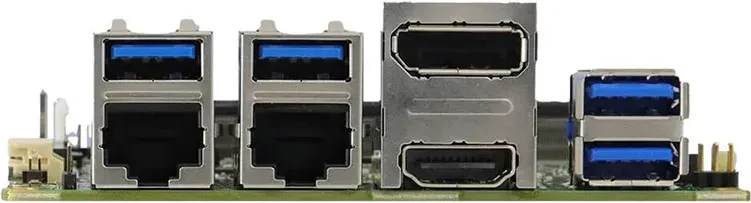

Video Output	1x HDMI (2.0b)1x DisplayPort 1.2a (DP++)
Ethernet	2x Realtek RTL-8125BI PCIe 2.5GbE LAN ports
I/O Chip	Fintek F81804U-I
Serial Port	2x RS232/422/485
USB 2.0	2x USB 2.0 via pin header
USB 3.X	4x USB 3.2
Serial ATA	1x SATA 3.0
Audio	N/A
TPM	TPM (2.0)
Others	Digital I/O (4-in/4-out)
Dimensions (L x W)	100mm x 72mm (3.94” x 2.84”)
Power Consumption	Intel® Atom x7835RE 3.6GHz w/ 1x16GB DDR5 5600 SODIMMTranscend TS2GSA64V6E-I+12V:3.22A
Operating Temperature	-40°C~+70°C ( -40°F~+158°F)
Storage Temperature	-40°C~+70°C (-4°F~+158°F)
Relative Humidity	95% (non-condensing @60°C)
