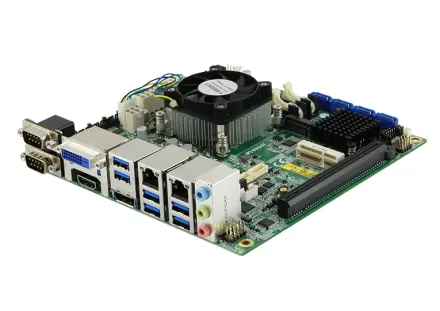

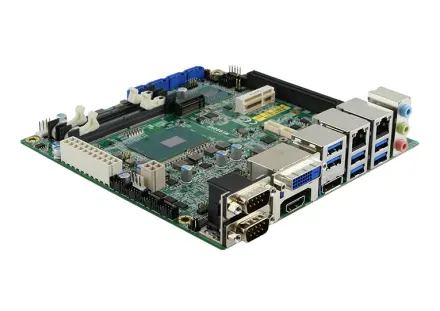

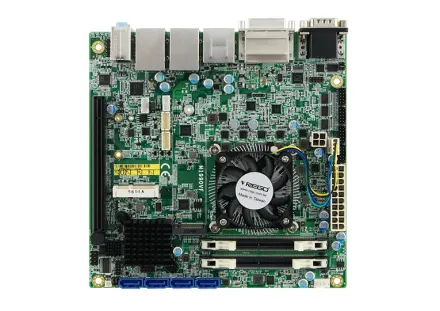

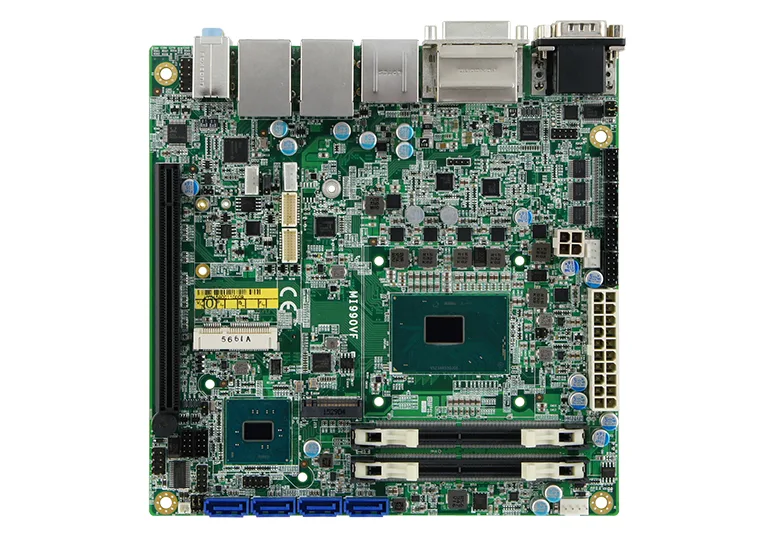

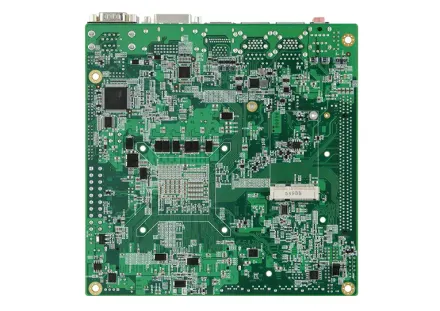

MI990
Mini-ITX Motherboard with 6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® Processors
Mini-ITX Motherboard with 6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® Processors. Local warranty support and engineering customization available on request.
Specifications
| CPU Socket | BGA1440 |
|---|---|
| CPU | 6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® QC/ DC processors, up to 3.7GHz |
| PCH | MI990VF series: Intel® CM236 PCHMI990EF series: Intel® HM170 PCH |
| Memory | 2x DDR4 SO-DIMM, Max. 32GB (supports ECC by CPU SKUs) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 1x mSATA via Mini PCI-E (via SATA III)1x M.2 slot (via SATA III & PCI-E) |
| Expansion Slots | 1x PCI-E (x16) |
| Mini Type Slots | 2x Mini PCI-E1x M.2 |
| Graphics Controller | 6th Gen Intel® Xeon® / Core™ i7/ i5/ i3 / Celeron® processor integrated |
| Video Output | Supports DVI-D, HDMI (2.0), DisplayPort and 24-bit dual-channel LVDS |
| Ethernet | MI990VF series: Intel® I219LM Gigabit LAN PHYMI990EF series: Intel® I219V Gigabit LAN PHYIntel® I211AT or I210AT Gigabit LAN (as 2nd LAN) |
| I/O Chip | Fintek F81866AD-I |
| Serial Port | 5x RS2321x RS232/422/485 (jumper-less selection) |
| USB 2.0 | 4x USB 2.0 via pin-header |
| USB 3.X | 6x USB 3.0 on board |
| Serial ATA | MI990VF series: 4x SATA IIIMI990EF series: 2x SATA III |
| Audio | Intel® CM236 / HM170 PCH built-in HD audio + Realtek ALC888S codec |
| TPM | TPM (2.0) |
| Others | Digital I/O(4-in/4-out), RAID, iAMT (11.0), iSMART |
| Dimensions (L x W) | 170mm x 170mm (6.7" x 6.7") |
| Power Consumption | Intel® Core™ i5-6400EQ 2.4GHz w/ 2x 8GB DDR4-2133+12V: 2.84A; +5V: 1.45A; +5VSB: 0.058A; +3.3V: 0.52A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

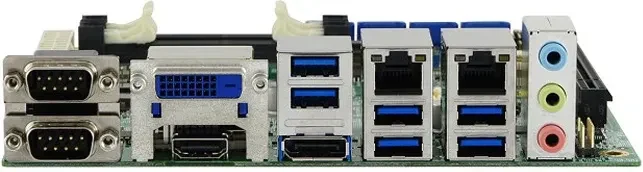

I/O — Rear panel
