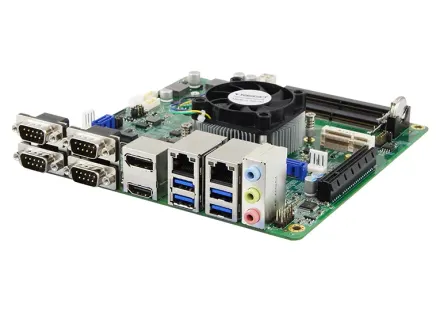

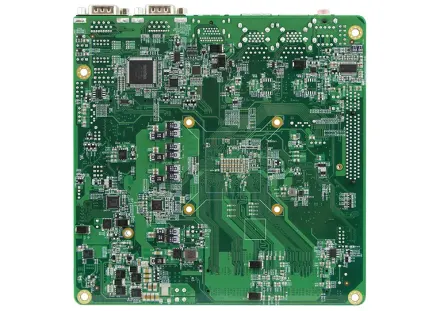

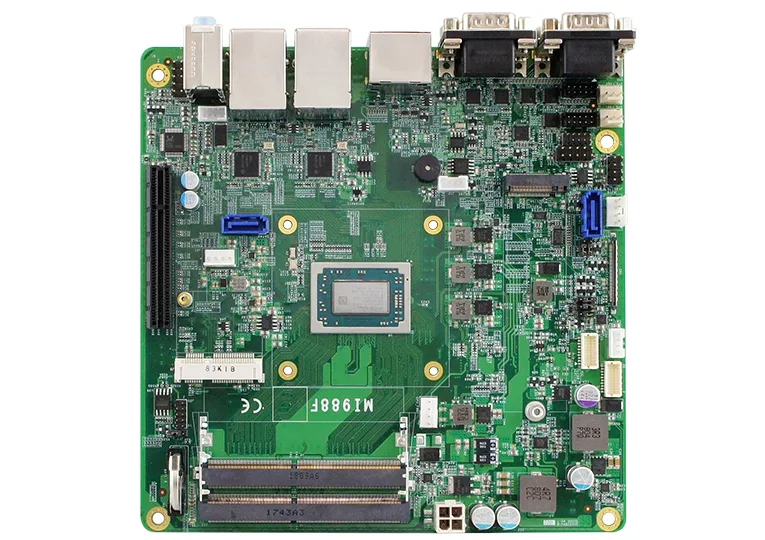

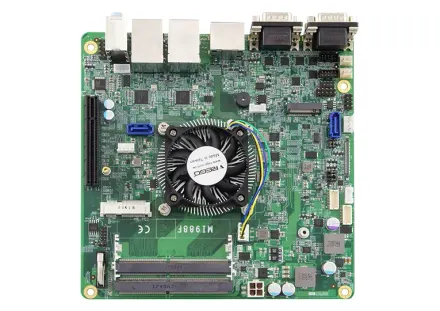

MI988
Mini-ITX Motherboard with AMD Ryzen™ Embedded R2000/V1000 Series Processors
Mini-ITX Motherboard with AMD Ryzen™ Embedded R2000/V1000 Series Processors. Local warranty support and engineering customization available on request.
CPU
BGA 1140 APU on board
MEMORY
DDR4 SO-DIMM, supports ECC2x DDR4-2666, Max. 32GB
STORAGE
1x M.2 (supports NVMe)
DISPLAY
1x HDMI (2.0a), 1x DisplayPort (1.2)1x eDP or 1x 24-bit dual-channel LVDS
Mini-ITX MotherboardMotherboard
Specifications
26 ROWS
| CPU Socket | BGA 1140 APU on board |
|---|---|
| CPU | AMD Ryzen™ Embedded R2000/V1000 Series on board |
| PCH | N/A |
| Memory | DDR4 SO-DIMM, supports ECC2x DDR4-2666, Max. 32GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 1x M.2 (supports NVMe) |
| Expansion Slots | 1x PCI-E (x8), 1x M.2 (M-Key, type: 2280) |
| Mini Type Slots | 1x Mini PCI-E |
| Graphics Controller | AMD Radeon™ Vega GPU integrated |
| Video Output | 1x HDMI (2.0a), 1x DisplayPort (1.2)1x eDP or 1x 24-bit dual-channel LVDS |
| Ethernet | 2x Intel® I211AT or I210AT Gigabit LAN |
| I/O Chip | Nuvoton NCT6116D |
| Serial Port | 2x RS232/422/485 (jumper-less selection)4x RS232 |
| USB 2.0 | N/A |
| USB 3.X | 4x USB 3.1 on board |
| Serial ATA | 2x SATA III |
| Audio | Built-in HD audio + Realtek ALC888S codec |
| TPM | N/A |
| Others | Digital I/O (4-in/4-out), iSMART, +12V~+24V DC-in |
| Dimensions (L x W) | 170mm x 170mm (6.7" x 6.7") |
| Power Consumption | AMD Ryzen™ Embedded V1807B 3.35GHzw/ 2x 8GB DDR4-2133+24V: 2.55A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

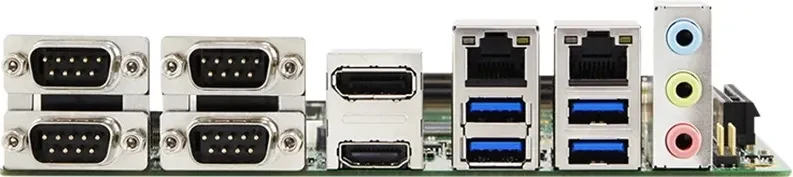

I/O — Rear panel
Front access
Where the MI988 is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
