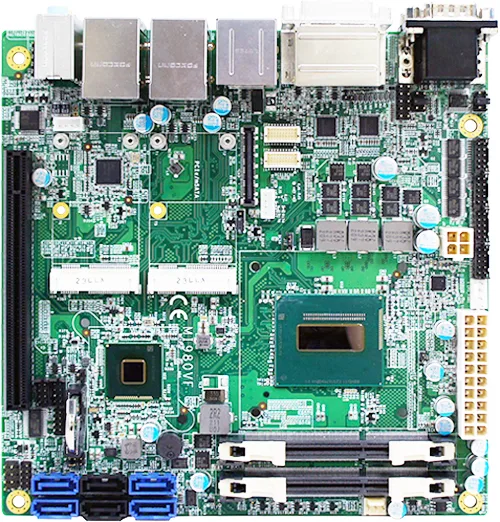

MI980
Onboard 4th Generation Intel® Core™ i7/i5 processors based on the mobile Intel® QM87 and HM86 Express chipsets
Onboard 4th Generation Intel® Core™ i7/i5 processors based on the mobile Intel® QM87 and HM86 Express chipsets. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Type de processeur | BGA1364 for 4th generation Intel® mobile Core i7/i5 processors |
|---|---|
| Mémoire système | 2x DDR3/DDR3L SO-DIMM, Max. 16GB (Non-ECC) |
| Chipset système | Intel® QM87 PCH (MI980VF) / HM86 PCH ( MI980F) |
| BIOS | AMI |
| Minuterie de surveillance | 256 levels |
| SSD | 1x mSATA via Mini PCI-E (Thru SATA III) |
| Surveillance matérielle | Yes |
| Emplacement d’extension | 1x PCI-E(x16), 2x Mini PCI-E(x1) |
| Contrôleur VGA | 4th Generation Intel® Core i7/i5/i3 / Celeron® integrated Gfx, supports CRT, DVI, DisplayPort, LVDS / eDP |
| Mémoire VGA | Max. Shared memory – 1024MB |
| Interface d’affichage | Supports 24-bit dual channel LVDS/eDP, DVI-I, DVI-D, DisplayPort |
| Contrôleur | MI980VF: Intel® I217LM Gigabit LAN PHY · MI980F: Intel® I217V Gigabit LAN PHY · MI980 Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN) |
| Connecteur | 2x RJ-45 on board |
| Chipset | Fintek F81866AD-I · 1x RS-232/422/485 (jumperless selection) · 5x RS232 · MI980VF: 4x SATA III, 2x SATA II · MI980F: 2x SATA III, 2x SATA II |
| USB | 2 ports on board, 4 ports via pin-header (USB 2.0) · 4 ports on board (USB 3.0) |
| Audio | Intel® QM87 / HM86 PCH built-in HD audio controller + ALC892 w/ 7.1 channels |
| Autres | Digital I/O (4-in/4-out), ATX power connector, iSMART support |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Alimentation max. requise | TBC |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 10%~90% (non-condensing) |

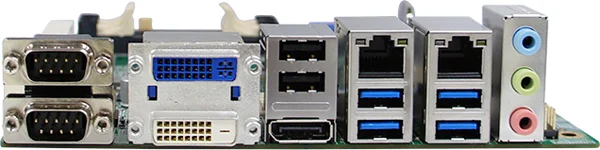

E/S — Panneau arrière
