MI963
AMD Embedded G-Series SoC Mini-ITX Motherboard w/ GX-424CC SoC 2.4 GHz
AMD Embedded G-Series SoC Mini-ITX Motherboard w/ GX-424CC SoC 2.4 GHz. Local warranty support and engineering customization available on request.
CPU
AMD Embedded G-Series GX-424CC SoC (2.4GHz)
MEMORY
2x DDR3 DIMM, Max. 8GB (ECC compatible )
STORAGE
N/A
DISPLAY
Supports 2x HDMI
Specifications
22 ROWS
| CPU | AMD Embedded G-Series GX-424CC SoC (2.4GHz) |
|---|---|
| System Memory | 2x DDR3 DIMM, Max. 8GB (ECC compatible ) |
| System Chipset | Integrated |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| SSD | N/A |
| H/W Monitor | Yes |
| Expansion Slots | 1x PCI-E(x8)[(x4) Link] |
| VGA Controller | AMD Embedded G-series SoC built-in GPU · (AMD Radeon™ HD8000 series) |
| Display Interface | Supports 2x HDMI |
| LAN Controller | 2x Intel® I211AT PCI-E Gigabit LAN |
| LAN Connector | 2x RJ-45 on board |
| I/O Chipset | Fintek F81846AD-I · 3x RS232, 1x RS232/422/485 (jumperless selection) · 2x SATA III |
| USB | 4 ports onboard, 2 ports via pin-header (USB 2.0) · 2 ports onboard (USB 3.0) |
| Audio | AMD Embedded G-series SoC built-in audio controller w/ Realtek ALC662QHD codec · Extra 3W + 3W amplifier |
| Others | Digital I/O (4-in/4-out), ATX power connector |
| Dimensions | 170mm x 170mm (6.7“ x 6.7“) |
| Max. Power Requirement | AMD GX-424CC 2.4GHz · w/ 2x DDR3L-1600 8G |
| +12V | 1.56A; +5V: 1.75A; +5VSB: 0.13A; +3.3V: 0.23A |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
Features
7 ROWS
| Feature 1 | Onboard AMD Embedded G-Series GX-424CC SoC, 2.4GHz |
|---|---|
| Feature 2 | 2x DDR3 DIMM, Max. 8GB |
| Feature 3 | Supports 2x HDMI |
| Feature 4 | 2x Intel® PCI-E Gigabit LAN |
| Feature 5 | Watchdog timer, Digital I/O |
| Feature 6 | 6x USB 2.0, 2x USB 3.0, 6x COM |
| Feature 7 | 2x SATA III, 1x PCI-E(x8) [(x4) Link] |
Ordering Information
2 ROWS
| MI963F-222 | - AMD Embedded G-series GX-222GC APU on board Mini-ITX motherboard, w/ 2x HDMI, PCI-E, dual Gigabit LAN |
|---|---|
| MI963F-424 | - AMD Embedded G-series GX-424CC APU on board Mini-ITX motherboard, w/ 2x HDMI, PCI-E, dual Gigabit LAN |

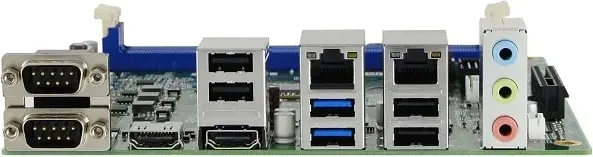

I/O — Rear panel
