INDUSTRIAL MOTHERBOARDS / IN STOCK
MI959

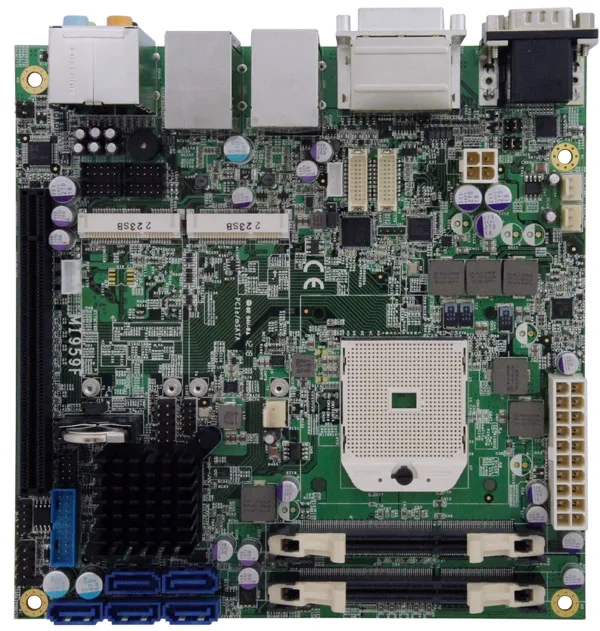

Sockt FS1r2 AMD R-Series Mini-ITX Motherboard /w AMD A70M FCH
Sockt FS1r2 AMD R-Series Mini-ITX Motherboard /w AMD A70M FCH. Local warranty support and engineering customization available on request.
CPU
AMD Socket FS1r2
MEMORY
Two DDR3 SO-DIMM sockets · up to 8GB, non-ECC, 1333/1066/800
STORAGE
-20°C~80°C (-4°F~176°F)
ETHERNET
2x Realtek 8111E Gigabit LAN · RJ-45 on board
Specifications
23 ROWS
| CPU Socket | AMD Socket FS1r2 |
|---|---|
| CPU | AMD R-Series, up to 3.1GHz |
| Chipset | AMD A70M FCH |
| BIOS | AMI |
| System Memory | Two DDR3 SO-DIMM sockets · up to 8GB, non-ECC, 1333/1066/800 |
| Integrated VGA | AMD A70M built-in Radeon HD7000 series graphics core · Shared memory · Onboard DVI-I, DisplayPort and 24-bit dual channel LVDS |
| LAN | 2x Realtek 8111E Gigabit LAN · RJ-45 on board |
| Audio | Built-in HD audio with ALC892 codec for 7.1 channels |
| LPC I/O | Nuvoton NCT6106D |
| Serial Ports | 1x RS-232/422/485 and 5x RS-232 ports |
| Serial ATA Interface | 5x SATA III ports |
| USB | 4 USB 3.0 ports · 4 USB 2.0 ports |
| Digital I/O | 4 in / 4 out |
| Watchdog Timer | Generates system reset; 256 levels |
| Expansion Slots | 1x PCI-E (X16) · 2x Mini PCI-E - w/ USB signal (2x full-Size) |
| Other Features | iSMART · 1x mSATA |
| Power Connector | ATX, 20-pin |
| Form Factor | Mini-ITX |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Power Consumption | TBC |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |

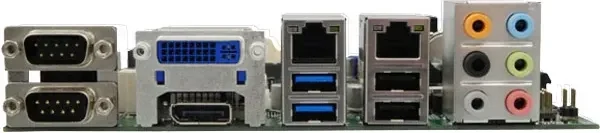

I/O — Rear panel
Front access
Where the MI959 is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
