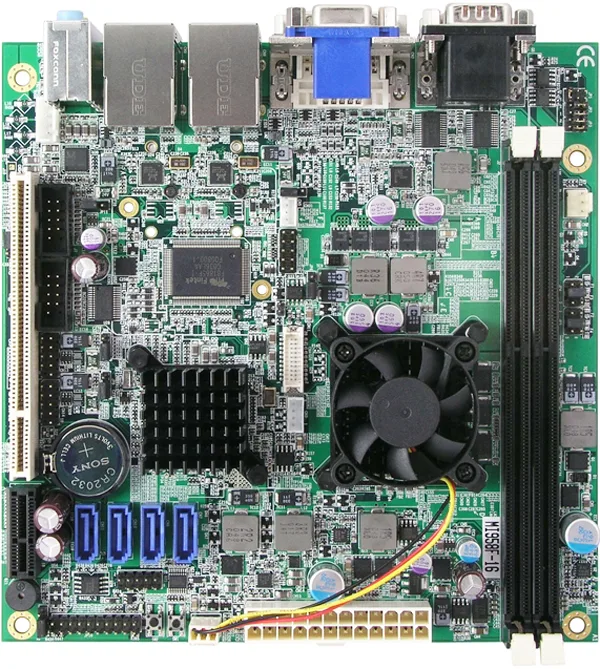

MI958
AMD G-Series APU Mini-ITX Motherboard w/ AMD A55E chipset
AMD G-Series APU Mini-ITX Motherboard w/ AMD A55E chipset. Local warranty support and engineering customization available on request.
CPU
N/A Embedded processor
MEMORY
2x DDRIII DIMM, Max. 8GB
ETHERNET
Dual Realtek RTL8111E Gigabit LAN; RJ-45 on board
POWER
ATX-20
Specifications
19 ROWS
| CPU Socket | N/A Embedded processor |
|---|---|
| CPU | AMD G-series Dual Core APU on board, up to 1.65GHz |
| Chipset | AMD A55E FCH |
| BIOS | AMI BIOS, ACPI supported |
| System Memory | 2x DDRIII DIMM, Max. 8GB |
| Integrated VGA | AMD G-series APU built-in Radeon HD6320 (G-T56N) / Radeon HD6290 (G-T40N); built-in ATI Supports CRT and DVI-D; 18-bit single channel LVDS displays |
| Audio | Chipset built-in HD audio controller; ALC 269 codec; Supports 2.1-channel (Line-in, Line-out and Microphone) |
| LAN | Dual Realtek RTL8111E Gigabit LAN; RJ-45 on board |
| Multi I/O | Fintek F81865-I;3x RS232, 1x RS232/422/485, 4x SATA III |
| Serial ATA Interface | 4x SATA ports III |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Watchdog Timer | Generates system reset; 256 levels |
| Digital I/O | 4 in and 4 out |
| Expansion Slots | 1x PCI, 1x PCI-E(x1), 1x Mini PCI-E(x1) |
| Edge Connectors | 2x COM, VGA, DVI-D, 2x RJ45, 4x USB, audio |
| Power Source | ATX-20 |
| Form Factor | Mini iTx |
| Dimensions | 170mm x 170mm |
| Power Consumption | TBC |
I/O — Rear panel
Front access
Where the MI958 is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓MI958 user manualPDF document
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
REQUEST PORTAL ACCESS§ Related
