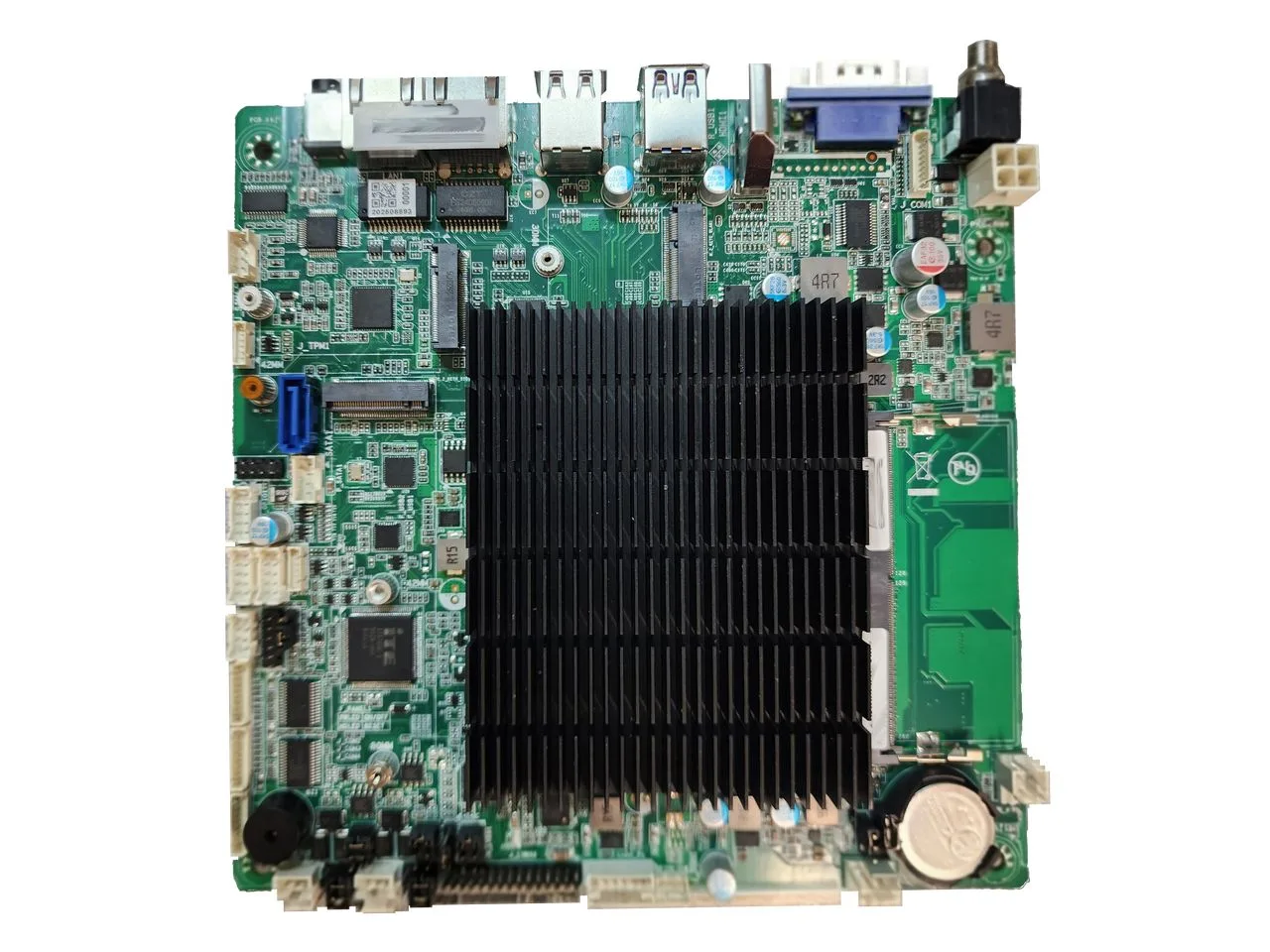

MI8385F
Intel Alder Lake-N CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2
Intel Alder Lake-N CPU, DDR5, 11xUSB, 6xCOM, 2xLAN, 3xM.2. Local warranty support and engineering customization available on request.
CPU
Intel Alder Lake-N N50, Core i3-N300 CPU
MEMORY
DDR4-3200, 1*SO-DIMM, up to 16GB
STORAGE
1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD)
DISPLAY
1xHDMI: max resolution up to 4096*2160@60Hz · 1x VGA
P/N # MI8385F
Specifications
19 ROWS
| CPU | Intel Alder Lake-N N50, Core i3-N300 CPU |
|---|---|
| Memory | DDR4-3200, 1*SO-DIMM, up to 16GB |
| Storage | 1xSATA 3.0 · 1xM.2 (Key-B, 2242/2280, NVMe PCIe x1/ SATA SSD) |
| Expansion Interface | 3xM.2 (Key-M, Key-B, Key-E) |
| BIOS | AMI UEFI BIOS |
| Serial | 6x RS232 |
| USB | 4x USB 3.0, 7x USB 2.0 |
| Audio | Realtek 5.1 channel HDA Codec, with MIC/Line-out and Amplifier |
| Parallel | 1x LPT Header |
| Display Interface | 1xHDMI: max resolution up to 4096*2160@60Hz · 1x VGA |
| Display Channel | Triple |
| Ethernet | 2x Intel 2.5Gbps PCIe Ethernet Controller, RJ45 |
| GPIO | 8x Programmable GPIO |
| Dimension | 170x170mm |
| Power Input | DC 12V |
| Others | 1x Cash Drawer Control Wafer, 1x I2C Touch Wafer, 1x Case Open Header |
| Operating | 0~60oC 10%~90% |
| Storage | -25~+75oC at 5%~95%, non-condensing |
| Compatible OS | Windows 10/11, Linux |
Ordering Information
2 ROWS
| MI8385F | - Intel N95 Low Power Dual Core SoC on board, Mini-iTx SBC |
|---|---|
| MI8386F | - Intel Core X7211E Low Power Dual Core SoC on board, Mini-iTx SBC |

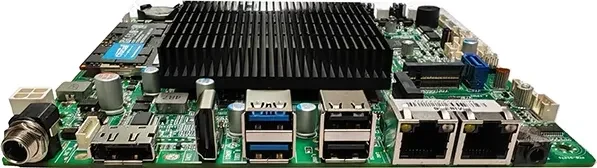

I/O — Rear panel
Front access
Where the MI8385F is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
