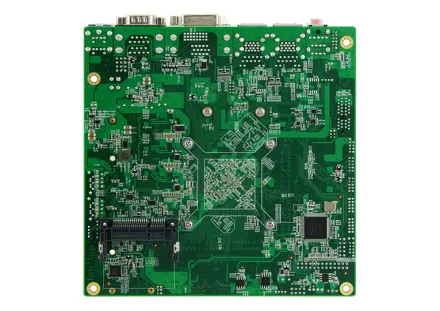

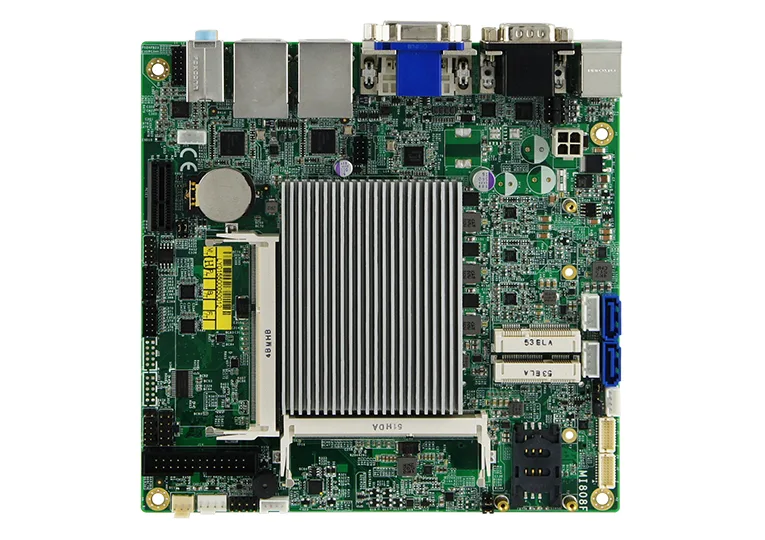

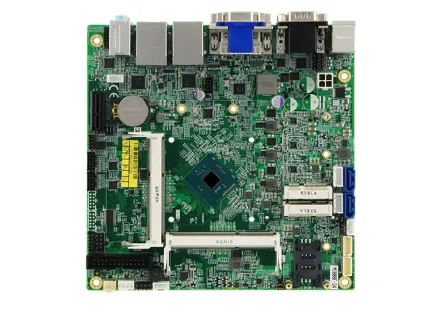

MI808
Mini-ITX Motherboard with Intel® Pentium® / Celeron® Processors
Mini-ITX Motherboard with Intel® Pentium® / Celeron® Processors. Local warranty support and engineering customization available on request.
CPU
FCBGA1170
MEMORY
2x DDR3L-1600 SO-DIMM socket, Max. 8GB
STORAGE
1x mSATA, 1x CFast (optional)
DISPLAY
Supports DVI-D, CRT 24-bit dual-channel LVDS
Mini-ITX MotherboardMotherboard
Specifications
26 ROWS
| CPU Socket | FCBGA1170 |
|---|---|
| CPU | Intel® Pentium® N3710, up to 2.4GHz or Celeron® N3010, up to 2.24GHz |
| PCH | N/A |
| Memory | 2x DDR3L-1600 SO-DIMM socket, Max. 8GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | 1x mSATA, 1x CFast (optional) |
| Expansion Slots | 1x PCI-E (x1) |
| Mini Type Slots | 1x Mini PCI-E |
| Graphics Controller | Intel® Pentium® SoC integratedIntel® Gen-8 graphics |
| Video Output | Supports DVI-D, CRT 24-bit dual-channel LVDS |
| Ethernet | Intel® I211AT or I210AT Gigabit LAN |
| I/O Chip | Fintek F81846AD-I |
| Serial Port | 1x RS232/422/485 (jumper-less selection)3x RS232, PS/2 keyboard/mouse1x printer port |
| USB 2.0 | 2x USB 2.0 via pin-header |
| USB 3.X | 4x USB 3.0 on board |
| Serial ATA | 2x SATA III |
| Audio | Intel® Pentium SoC built-in HD audio + Realtek ALC269 codec |
| TPM | TPM(2.0) |
| Others | Digital I/O (4-in/4-out); 12V DC-in or 18V~24V DC-In; iSMART; TPM(2.0); SIM card slot, CFast (option) |
| Dimensions (L x W) | 170mm x 170mm (6.7" x 6.7") |
| Power Consumption | Intel® Pentium® Processor N3710 1.6GHz w/ 2x 4GB DDR3L-1600+19V: 1.01A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60°C) |

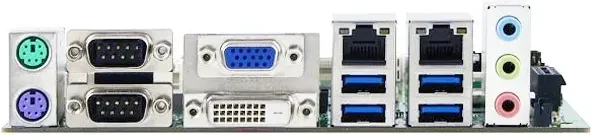

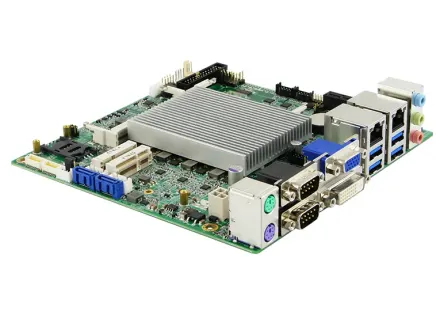

I/O — Rear panel
