MBB1005

Name: MBB1005
Brand: IBASE Technology
SKU: MBB1005
Availability: InStock

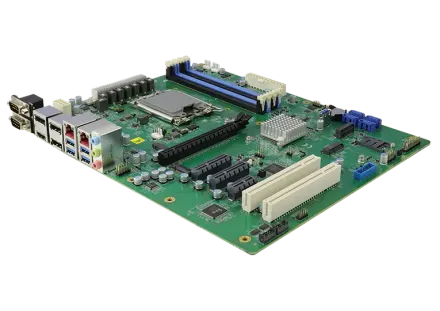

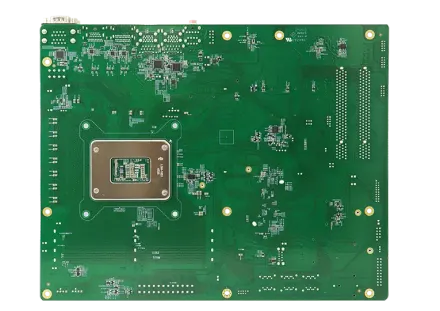

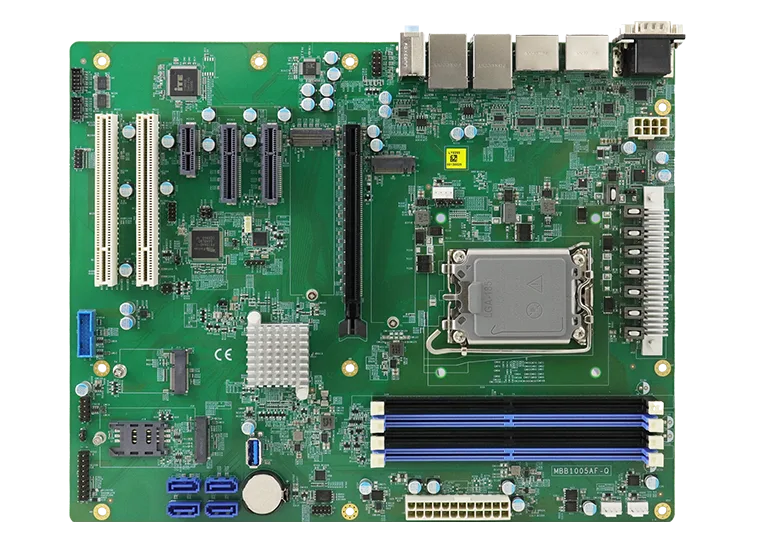

ATX Motherboard with Intel® Core™ Ultra 200S Series DT Processors (Arrow Lake-S)

ATX Motherboard with Intel® Core™ Ultra 200S Series DT Processors (Arrow Lake-S). Local warranty support and engineering customization available on request.

CPU

LGA1851

MEMORY

4x DDR5 U-DIMM sockets, Up to DDR5 -5600 memory module, Max. 192GB

STORAGE

SATA III & NVMe

DISPLAY

1x HDMI (2.0b) + 3x DisplayPort (1.4a) (DP++)

ATX MotherboardMotherboard

REQUEST QUOTE REQUEST DATASHEET

P/N # MBB1005

Driver Introduction to Watchdog Timer

Specifications

26 ROWS

CPU Socket	LGA1851
CPU	Intel® LGA1851 Core™ Ultra 200S Series DT Processors (Arrow Lake-S)
PCH	Q870
Memory	4x DDR5 U-DIMM sockets, Up to DDR5 -5600 memory module, Max. 192GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	SATA III & NVMe
Expansion Slots	1x PCI-E (x16) [Gen 5.0] 2x PCI-E(x4) 1x PCI-E(x1) 2x PCI
Mini Type Slots	2x M.2 (M-Key, type:2280, PCI-E(4x))1x M.2 (E-Key, type:2230, USB 2.0 + PCI-E(1x))1x M.2 (B-Key, type:3052, USB 3.2 + PCI-E(1x))
Graphics Controller	Intel® LGA1851 Core™ Ultra 200S Series DT processor integrated graphics

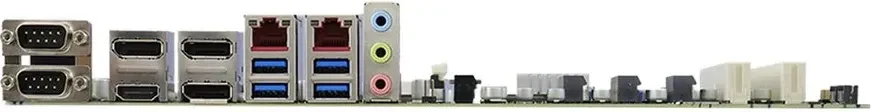

Video Output	1x HDMI (2.0b) + 3x DisplayPort (1.4a) (DP++)
Ethernet	LAN 1: Intel® I226LM, Support 2.5G and iAMTLAN 2: Intel® I226V, support 2.5G only
I/O Chip	Fintek F81964D-I
Serial Port	4x COM ports: 2x RS232/422/485 + 2x RS232
USB 2.0	2x USB 2.0 via pin-headers
USB 3.X	4x USB3.2 (10G bps) @edge connector2x USB3.2 (5G bps) @onboard box-header1x USB3.2 (10G bps) @onboard Type-A connector
Serial ATA	4x SATA III
Audio	Built-in HD Audio controller + Realtek ALC888S w/ 5.1 channels
TPM	Support dTPM(2.0) & fTPM (optional)
Others	Digital I/O (4-in/4-out), Watchdog timer PDPC, iSMART(4.0)
Dimensions (L x W)	305mm x 244mm (12"x 9.6")
Power Consumption	Intel® Core™ Ultra 9 285 / up to 5.60GHzw/ 4x 48GB DDR5 – 5600 DIMM+12V :19.33A+5V :2.36A+5VSB :0.067A+3.3V :0.88A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
