MBB1002

Name: MBB1002
Brand: IBASE Technology
SKU: MBB1002
Availability: InStock

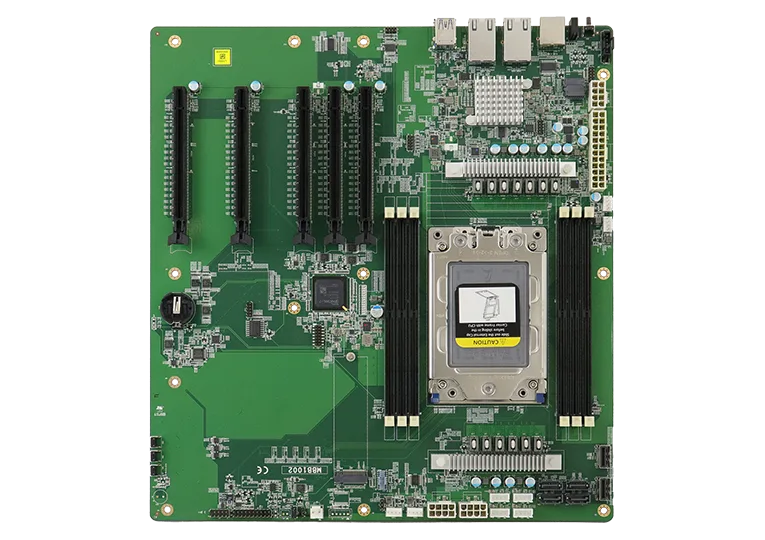

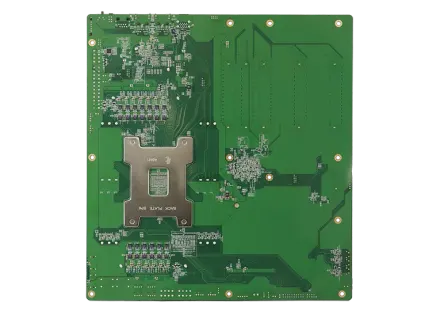

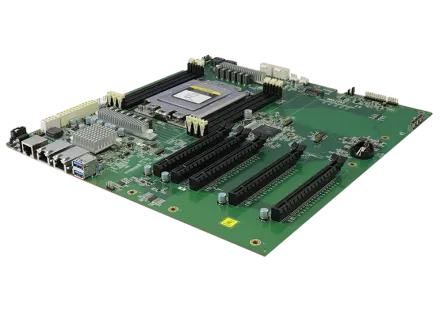

eATX Motherboard with AMD EPYC Embedded 8004 Series Processors

eATX Motherboard with AMD EPYC Embedded 8004 Series Processors. Local warranty support and engineering customization available on request.

CPU

AMD SP6 LGA 4844 (EPYC SP6 processors)

MEMORY

Six-Channel DDR5 4800, 6 slots RDIMM, Max. 576GB, supports ECC3600/4000/4400/4800MHz, 16GB, 32GB, 64GB, 96GB

STORAGE

4x SATA(6Gb/s)NVMe: 1x 2280 (by PCIe Gen.5 interface)NVMe: 2x MCIO x4 (Test by Gen.5 SSD)

DISPLAY

N/A

ATX MotherboardMotherboard

P/N # MBB1002

26 ROWS

CPU Socket	AMD SP6 LGA 4844 (EPYC SP6 processors)
CPU	AMD EPYC Embedded 8004 series
PCH	N/A
Memory	Six-Channel DDR5 4800, 6 slots RDIMM, Max. 576GB, supports ECC3600/4000/4400/4800MHz, 16GB, 32GB, 64GB, 96GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	4x SATA(6Gb/s)NVMe: 1x 2280 (by PCIe Gen.5 interface)NVMe: 2x MCIO x4 (Test by Gen.5 SSD)
Expansion Slots	5x PCI-E(x16) (Gen5.0)
Mini Type Slots	N/A
Graphics Controller	N/A
Video Output	N/A
Ethernet	2x Intel® X710-AT2 (Dual 10GbE port)
I/O Chip	TBD
Serial Port	1x External serial port (RS232)
USB 2.0	2x USB 2.0 PIN Header
USB 3.X	2x (USB 3.2 Gen1) with PDPC
Serial ATA	4x SATA (6Gb/s)
Audio	N/A
TPM	TPM 2.0
Others	1x 24-pin SSI power connector3x 8-pin SSI 12V power connector4x Fan header 4-pin (3 for system + 1 for CPU)1x SMBus3x LED (Power+HDD+Status refer to Genoa)1x RTC battery on board
Dimensions (L x W)	eATX (30.4 cm x 24.4 cm)
Power Consumption	TBD
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	0%~90% (non-condensing @60°C)
