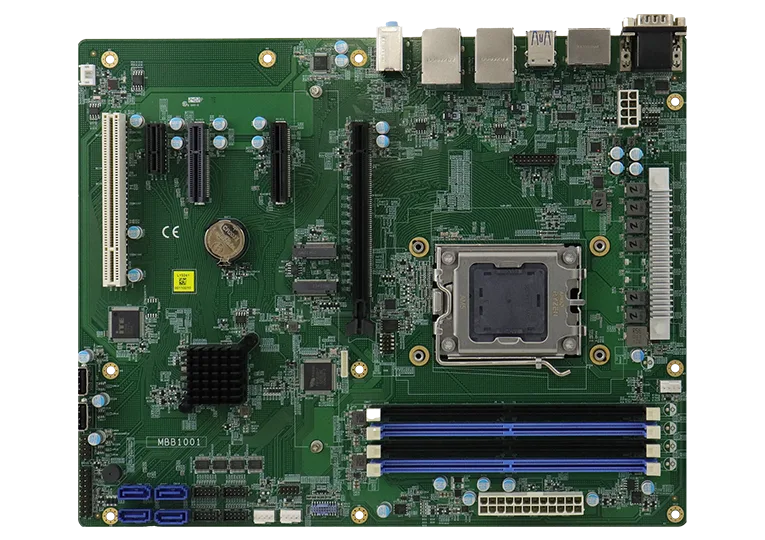

MBB1001

Name: MBB1001
Brand: IBASE Technology
SKU: MBB1001
Availability: InStock

ATX Motherboard with AMD Ryzen™ Embedded 7000 Series Processors

ATX Motherboard with AMD Ryzen™ Embedded 7000 Series Processors. Local warranty support and engineering customization available on request.

CPU

LGA1718

MEMORY

Dual Channel DDR5 5200, UDIMM 4 slots, Max. up to 128GB Supports ECC

STORAGE

NVMe

DISPLAY

1x HDMI 2.11x DP 2.01x DVI-D

ATX MotherboardMotherboard

P/N # MBB1001

22 ROWS

CPU Socket	LGA1718
CPU	AMD Ryzen™ Embedded 7000 series
PCH	B650
Memory	Dual Channel DDR5 5200, UDIMM 4 slots, Max. up to 128GB Supports ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	NVMe
Expansion Slots	1x PCI-E x16 support (Gen5) / 1x PCI-E x4 support (Gen5)1x PCI-E x4 support (Gen4) / 1x PCI-E x1 support (Gen3) / 1x PCI
Graphics Controller	2x Gigabit LAN / Intel I226-V
Video Output	1x HDMI 2.11x DP 2.01x DVI-D
Serial Port	1x Dual DB9 stack connector for- COM #1 (RS232/422/485) (jumper-less selection)- COM #2 (RS232)4x COM Port Header (RS232)
USB 2.0	2x USB 2.0 via pin header, 2x USB 2.0 type A vertical connector
USB 3.X	4x USB 3.2 Gen 2, + 2 x USB 3.2 Gen1 With PDPC support
Serial ATA	4x SATA 6Gb/s SUPPORT RAID 0, 1, 10 / UEFI and Windows 10 x64 Only (9.2 based driver)
Audio	1x Triplet type jack 3 x 1 for HD audio port [Line-in / Lineout / Mic-in]Realtek ALC888S for 5.1 channel
Others	Digital I/O (4-in/4-out)
Dimensions (L x W)	305mm x 244mm (12” x 9.6”)
Power Consumption	MBB1001-7645 / 7745 / 7945:AMD Ryzen™ 5 PRO 7645 3.8GHzAMD Ryzen™ 7 PRO 7745 3.8GHzAMD Ryzen™ 9 PRO 7945 3.7GHzw/ 1x 8GB DDR5-5200 UDIMM+12V: ~6.5A / +12V: ~7.0A / +12V: ~7.5A
Operating Temperature	0°C~60°C ( 32°F~140°F)
Storage Temperature	20°C~80°C (-4°F~176°F)
Relative Humidity	95% (non-condensing @60°C)
