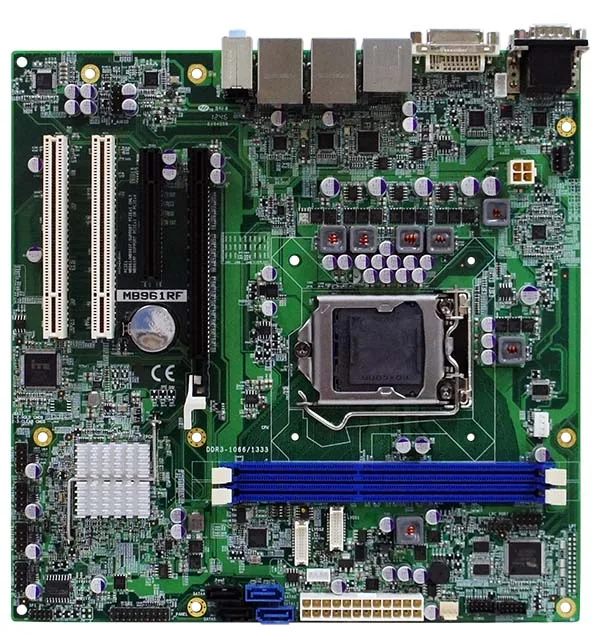

MB961
LGA115 Intel® Core™ i7 / i5 / i3 Micro ATX Motherboard Intel® Q67 Express Chipset
LGA115 Intel® Core™ i7 / i5 / i3 Micro ATX Motherboard Intel® Q67 Express Chipset. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.
Spécifications
| Socle du processeur | LGA1155 |
|---|---|
| Processeur | 3rd Generation Intel Core™ i7 / i5 / i3, Pentium/Celeron processors · Up to 3.4GHz |
| Chipset | Intel® Q67 (MB961RF) Intel® H61 (MB961F and MB961) |
| BIOS | AMI BIOS, ACPI supported |
| Mémoire système | 2x DDR3 DIMM Max. 16GB (Non-ECC) |
| LAN | Intel 82579V Gigabit LAN · Reakltek RTL8111E Gigabit LAN · RJ-45 on board |
| Audio | Intel H61/Q67 built-in HD audio with Realtek ALC892 |
| Multi-E/S | Fintek F81866-AD · For 3x RS-232, 1x RS-232/422/485 (jumperless selecting), · 2x SATA II+2x SATA III (MB961RF) or 4x SATA II (MB961F) · 2 ports on board (USB 3.0) · MB961F : 4 ports on board + 6 ports via pin header (USB 2.0) · MB961RF : 4 ports on board + 8 ports via pin header (USB 2.0) |
| Minuterie de surveillance | Generates system reset; 256 levels |
| Interface Serial ATA | 2x SATA II+2x STA III (MB961RF) or 4x SATA II (MB961F) |
| Minuterie de surveillance | Generates system reset; 256 levels |
| Surveillance matérielle | Monitors system/CPU temperature and voltage status |
| E/S numériques | 4 in and 4 out |
| Autres caractéristiques | Digital I/O(4-in/4-out), iSMART, RAID (MB961RF only) |
| Emplacements d’extension | 2x PCI, 1x PCI-E(x16), 1x PCI-E(x8) |
| Connecteurs de bord | COM ports, DVI-I, USB+HDMI, 2x USB+RJ-45, Audio |
| Format | Micro-ATX Motherboard |
| Dimensions | 244mm x 244mm (9.6" x 9.6") |
| Température de fonctionnement | 0°C~60°C (32°F~140°F) |
| Température d’entreposage | -20°C~80°C (-4°F~176°F) |
| Humidité relative | 10%~90% (non-condensing) |
Caractéristiques
| Caractéristique 1 | Supports 3rd Generation Intel Core™ i7 / i5 / i3, Pentium/Celeron processors |
|---|---|
| Caractéristique 2 | 2x DDR3 DIMM, Max. 16GB |
| Caractéristique 3 | Integrated chipset VGA, supports HDMI™, DVI-I, LVDS |
| Caractéristique 4 | Intel® 82579V Gigabit LAN |
| Caractéristique 5 | Realtek RTL8111E Gigabit LAN |
| Caractéristique 6 | 12x USB 2.0, 2x USB 3.0, 4x COM, 4x SATA II, 2x SATA III |
| Caractéristique 7 | 2x PCI, 1x PCI-E(x16), 1x PCI-E(x8) |
| Caractéristique 8 | Watchdog timer, Digital I/O, iSMART, RAID |
Informations de commande
| MB961RF | - LGA1155 Q67 Micro ATX motherboard with HDMI, DVI-I and LVDS, Dual Gigabit LAN, 2x SATA III, 2x SATA II, 1x PCI-E(16x),1x PCIe(4x), 2x PCI, |
|---|---|
| MB961F | - LGA1155 H61 Micro ATX motherboard with HDMI, DVI-I and LVDS, Dual Gigabit LAN, 4x SATA II,1x PCI-E(16x), 1x PCI-E(1x),2x PCI, iSMART |

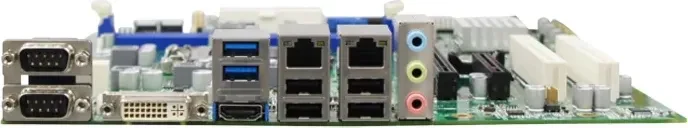

E/S — Panneau arrière
Accès frontal
Où le MB961 est déployé
Desktop-class compute in custom industrial enclosures and rack systems.
CNC controller hosts, robotic coordinators, and motion-control platforms.
Base platform for OEMs building their own industrial PC housings.
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
