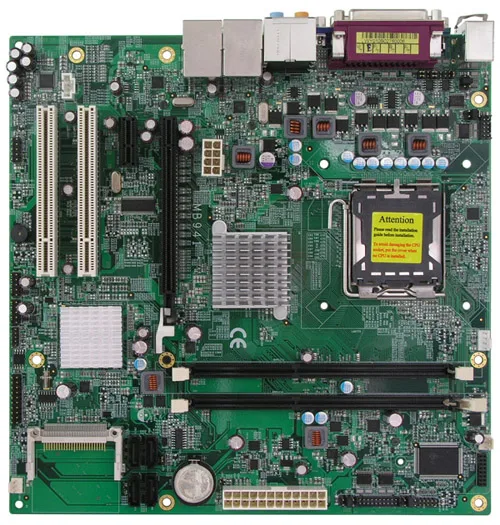

MB941
LGA775 Intel Core2 Quad Micro-ATX Motherboard
LGA775 Intel Core2 Quad Micro-ATX Motherboard. Local warranty support and engineering customization available on request.
CPU
LGA775
MEMORY
2x DDR3 DIMM, Max. 4GB
STORAGE
-20°C~80°C (-4°F~176°F)
ETHERNET
Two Realtek RTL8111E PCI-E Gigabit LAN · RJ-45 on board
Specifications
26 ROWS
| CPU Socket | LGA775 |
|---|---|
| CPU | Intel® Core™2 Quad/ Core™2 Duo/ Celeron® processors |
| CPU Front Side Bus ( FSB ) | 800/1066/1333MHz |
| Chipset | Intel® G41 Express Chipset · ICH7 |
| BIOS | Award BIOS |
| System Memory | 2x DDR3 DIMM, Max. 4GB |
| Integrated VGA | Intel® G41 integrated GMA X4500 · CRT VGA edge connector |
| LAN | Two Realtek RTL8111E PCI-E Gigabit LAN · RJ-45 on board |
| Audio | ICH7 built-in high definition audio · with Realtek ALC892 codec for 7.1CH |
| LPC I/O | W83627UHG chipset supports keyboard, mouse, 3x RS232, 1x RS-wew/422/485, 4x SATA II, LPT |
| Serial ATA Interface | 4x SATA II ports, 3Gb/s |
| Serial Ports | 3x RS-232/422/485 and 1x RS-232 ports |
| USB | 8x USB 2.0 ports (4 on board, 8 via pin header) |
| Digital I/O | 4 in / 4 out |
| Watchdog Timer | Generates system reset; 256 levels |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Expansion Slots | 1x PCI-E(x16) · 1x PCI-E(x1) · 2x PCI |
| Edge Connectors | PS/2 keyboard and mouse · LPT, COM, VGA |
| Audio jacks | Two RJ-45 · 4 USB ports |
| Power Connector | 24-pin ATX power type |
| Form Factor | Micro-ATX Motherboard |
| Dimensions | 244mm x 244mm |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Power Consumption | Intel Pentium E2160 1.8GHz w/ 2x 1GB DDR3 · +3.3V: 0.3A · +5V: 2.75A · +12V: 0.43A |
Features
7 ROWS
| Feature 1 | Support Intel® Core™2 Quad / Inte® Core™2 Duo / Celeron® processors 800/1066/1333MHz FSB |
|---|---|
| Feature 2 | 2x DDR3 DIMM, Max. 4GB |
| Feature 3 | Integrated VGA, supports CRT |
| Feature 4 | Dual PCI-E Gigabit LAN |
| Feature 5 | Watchdog timer, Digital I/O |
| Feature 6 | 8x USB 2.0, 4x COM, 4x SATA II |
| Feature 7 | 1x PCI-E(x16), 1x PCI-E(x1), 2x PCI slots |
Ordering Information
2 ROWS
| MB941 | - LGA775 socket G41 Micro-ATX motherboard with VGA, and two Gigabit LAN |
|---|---|
| ID395-R | - TPM1.2 (LPC interface) board |
I/O — Rear panel
Front access
Where the MB941 is deployed
USE CASE
Industrial workstations
Desktop-class compute in custom industrial enclosures and rack systems.
USE CASE
Machine control
CNC controller hosts, robotic coordinators, and motion-control platforms.
USE CASE
OEM system builds
Base platform for OEMs building their own industrial PC housings.
USE CASE
Long-lifecycle refresh
Drop-in replacement for end-of-life industrial motherboards in fielded systems.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓MB941 datasheetPDF document
- DOWNLOAD ↓MB941 user manualPDF document
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
CUSTOMER PORTAL
Licensed customers get access to BIOS source, schematics, and full production test documentation.
