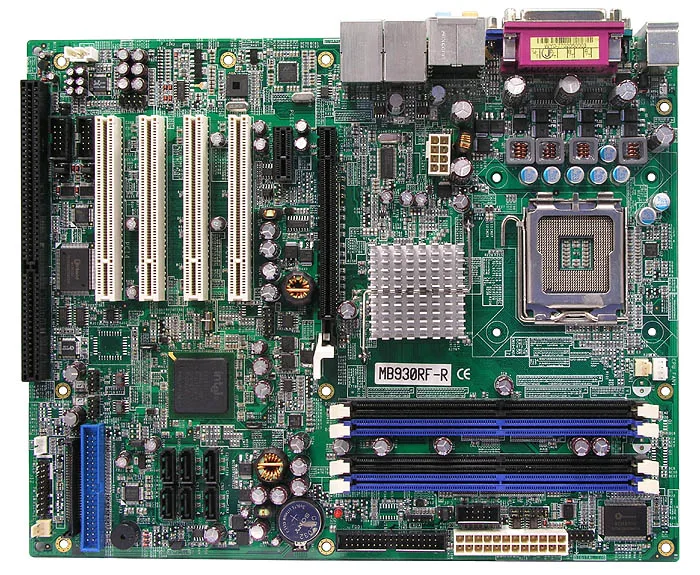

MB930
LGA775 Q35 ATX
LGA775 Q35 ATX. Local warranty support and engineering customization available on request.
CPU
LGA775
MEMORY
Four DDR2 sockets, up to 8GB DDR SDRAM · 667/800MHz DDRII SDRAM, w/o ECC
ETHERNET
Intel 82562V 10/100 BaseT (MB930 ) · Intel 82566DM Gigabit LAN and Marvel PCI-E Gigabit · LAN (for MB930F/GF/RF ) · RJ-45 on board
POWER
ATX, 24-pin
Specifications
25 ROWS
| CPU Socket | LGA775 |
|---|---|
| CPU | Intel™ Core™2 Duo, Intel™Core™2 Quad, Intel™ Celeron™ 400 Sequence processor · Up to 3.8GHz |
| CPU Front Side Bus ( FSB ) | 800MHz / 1066MHz / 1333MHz |
| Chipset | Intel™ Q35 Chipset · ICH9 (ICH9R for MB930RF ) |
| BIOS | Award BIOS, ACPI supported |
| System Memory | Four DDR2 sockets, up to 8GB DDR SDRAM · 667/800MHz DDRII SDRAM, w/o ECC |
| Integrated VGA | Q35 chipset built-in · Supports CRT interface · Shared memory, max. 384MB |
| LAN | Intel 82562V 10/100 BaseT (MB930 ) · Intel 82566DM Gigabit LAN and Marvel PCI-E Gigabit · LAN (for MB930F/GF/RF ) · RJ-45 on board |
| Audio | ICH9/ICH9R built-in audio + AC97 codec · (Line out, Line, Mic jacks on board) |
| LPC I/O | W83627EHG chipset supports IrDA x 1, Parallel x 1, COM1 (RS232), COM2 (RS232/422/485), FDC up to 1.44MB (slim-type), Hardware Monitor |
| Secondary I/O | Fintek F81216; for COM3 / COM 4 (RS232) |
| Serial ATA Interface | 4x SATA II ports, 3Gb/s · RAID and 6x ports available with MB930RF · Supports Intel™ Core™2 Quad / Core™2 Duo / Celeron™ 400 Sequence processors (Conroe-L) · Up to 3.8GHz, 800MHz/1066MHz/1333MHz · DDR2 DIMM x4, Max. 8GB · Single 10/100 LAN or dual PCI-E Gigabit LAN · Integrated Q35 VGA for CRT · 4 or 6 x SATA II (RAID option), 8 USB 2.0, 4 x COM, Watchdog timer · 1 x PCI-E(x16), 1 x PCI-E(x1), 4 PCI, 1 x ISA (slave) |
| PATA Interface | JMicro JMB368 PCI-E to PATA controller for one PATA channel supporting (40-pin IDE) 2 IDE devices featuring UDMA33/66/100, and CompactFlash socket on IDE1 (use either one at one time) |
| Serial Ports | One RS-232/422/485 and three RS-232 ports |
| USB | 8 USB 2.0 ports (4 on board, 4 via pin header) |
| IrDA | Pin header |
| Digital I/O | 4 in / 4 out |
| Watchdog Timer | Generates system reset; 256 levels |
| Hardware Monitoring | Monitors system/CPU temperature and voltage status |
| Expansion Slots | 1 x PCI Express x16, 1 x PCI Express x1, 4 x PCI, 1 x ISA (slave only) |

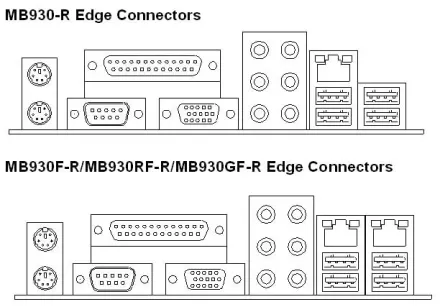

| Edge Connectors | PS/2 keyboard and mouse · VGA CRT · RJ-45 · Audio jacks · 4 USB ports · Serial Port (COM1) |
| Power Connector | ATX, 24-pin |
| Form Factor | ATX |
| Dimensions | 305mm x 244mm (12" x 9.6") |
| ENVIRONMENTAL FACTORS | Operating Temperature: 0°C~60°C (32°F~140°F) · Storage Temperature: -20°C~80°C (-4°F~176°F) · Relative Humidity: 10%~90% (non-condensing) · Edge Connectors on MB930 · - LGA775 Intel™ Q35 ATX Motherboard w/ ICH9, VGA, 10/100 LAN, 4x SATA · - LGA775 Intel™ Q35 ATX Motherboard w/ ICH9, VGA, dual Gigabit LAN, 4x SATA · - LGA775 Intel™ Q35 ATX Motherboard w/ ICH9, VGA, dual Gigabit LAN, 4x SATA (2.4mm PCB thickness, dark green) · - LGA775 Intel™ Q35 ATX Motherboard w/ ICH9, VGA, dual Gigabit LAN, 6x SATA, RAID |
