KIOSKCAM03

Name: KIOSKCAM03
Brand: IBASE Technology
SKU: KIOSKCAM03
Availability: InStock

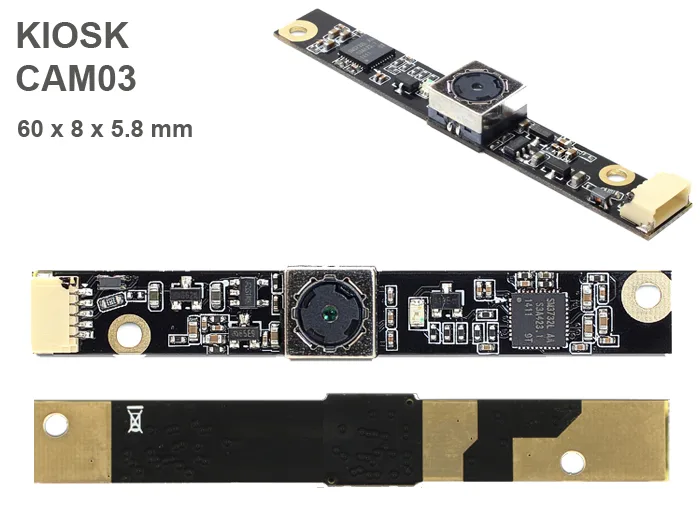

Camera Module 3.14 Megapixel 62° Auto Focus USB 2.0 interface

Camera Module 3.14 Megapixel 62° Auto Focus USB 2.0 interface. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

AFFICHAGE

QXGA (2048 x 1536)

ENVIRONNEMENT

5 ~ 40 °C

ALIMENTATION

Low operating voltage 5 V

DIMENSIONS

1/4 inch

P/N # KIOSKCAM03

12 LIGNES

Supports resolutions	QXGA (2048 x 1536)
Different fully-automated shutter priority	- Automatic image control functions including automatic · exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · • Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and autom. 50/60 Hz luminance detection · • Supports scaling
Consommation électrique	Low operating voltage 5 V
Température de fonctionnement	5 ~ 40 °C
Relative humidity during operation	max. 20 – 80 %
Lense dimension	1/4 inch
Sensitivity	0.6 V (Lux. sec)
Signal-to-noise ratio	36 dB
Dynamic range	68 dB
Lense	F/2.8 · • Auto focus
Frame rates	30fps@HVGA, VGA, XGA, 720p, QVGA · 15fps@UXGA, 1080p, QXGA
Dimension	60 x 8 x 5.8 mm (L/W/H)

3 LIGNES

Caractéristique 1	Camera module offers a very compact design, high resolution and low power consumption.
Caractéristique 2	It is ideally suited for integration into your projects.
Caractéristique 3	The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
