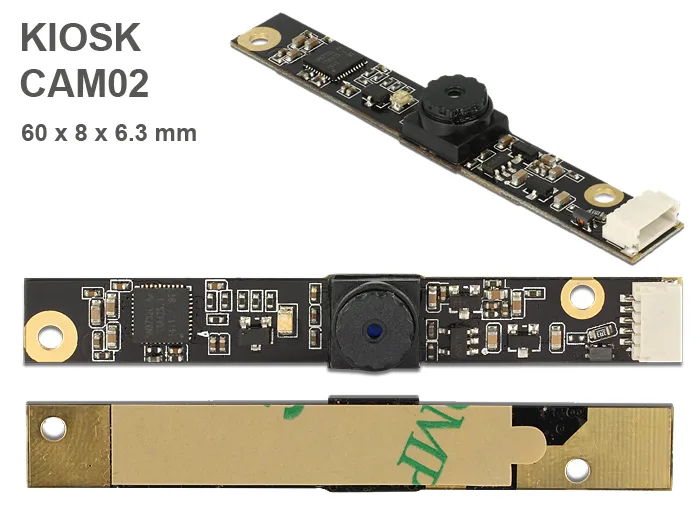

KIOSKCAM02

Name: KIOSKCAM02
Brand: IBASE Technology
SKU: KIOSKCAM02
Availability: InStock

IR Camera Module 3.14 mega pixel 48° V5 fix focus USB 2.0 interface

IR Camera Module 3.14 mega pixel 48° V5 fix focus USB 2.0 interface. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

AFFICHAGE

3.14 Mega Pixel · Without optical IR filter · Standard SCCB interface (I²C Bus) · RAW RGB, RGB565/555/444, CCIR656,YUV422/420, YCbCr422 and compression

ENVIRONNEMENT

5 °C ~ 50 °C

ALIMENTATION

5 V DC

DIMENSIONS

1/4 inch

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # KIOSKCAM02

Documentation

Spécifications

14 LIGNES

Connecteur	USB 2.0 5 pin jack SMT, 1 mm pitch
Résolution	3.14 Mega Pixel · Without optical IR filter · Standard SCCB interface (I²C Bus) · RAW RGB, RGB565/555/444, CCIR656,YUV422/420, YCbCr422 and compression
Maximum resolution	QXGA (2048 x 1536) · • Automatic image control functions including · - Automatic exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and automatic 50/60 Hz luminance detection · Supports scaling mode
Operating voltage	5 V DC
Température de fonctionnement	5 °C ~ 50 °C
Relative humidity during operation	max. 80 %
Sensor size	1/4 inch
Sensitivity	0.6 V (lx s)
Signal to noise ratio	36 dB
Dynamic range	68 dB
Fix focus	0.3 m ~ infinite
Lens	F/2.8
Frame rates	30 fps @ HVGA, VGA, XGA, 720p, QVGA · 15 fps @ UXGA, 1080p, QXGA
Dimension (LxWxH)	ca. 60 x 8 x 6.3 mm

Caractéristiques

1 LIGNES

Caractéristique 1

USB 2.0 camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, embedded systems, sensors, notebooks, smartphones, tablets or instrument manufacture. You can perform with suitable IR lighting shots in the dark.The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
