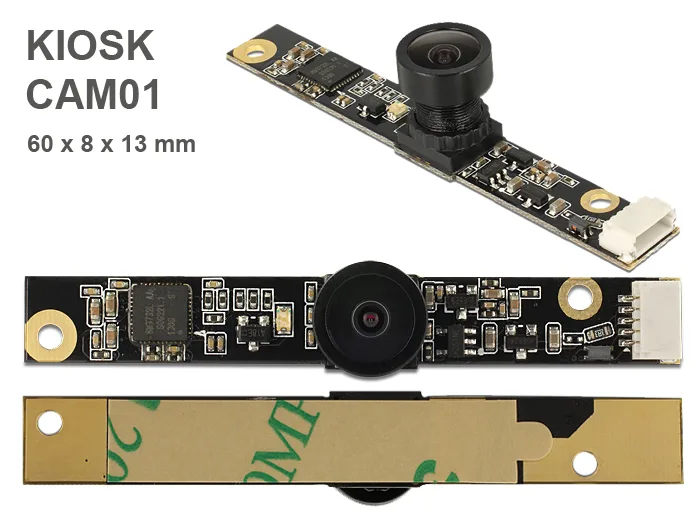

KIOSKCAM01

Name: KIOSKCAM01
Brand: IBASE Technology
SKU: KIOSKCAM01
Availability: InStock

Camera Module 3.14 mega pixel 80° fix focus USB 2.0 interface

Camera Module 3.14 mega pixel 80° fix focus USB 2.0 interface. Local warranty support and engineering customization available on request.

DISPLAY

QXGA (2048 x 1536) · • Automatic image control functions including · - Automatic exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · • Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and automatic 50/60 Hz luminance detection

OPERATING TEMP.

5 °C ~ 50 °C

POWER

5 V DC

DIMENSIONS

1/4 inch

REQUEST QUOTE DATASHEET (PDF)

P/N # KIOSKCAM01

Manual

Specifications

14 ROWS

• Connector	USB 2.0 5 pin jack SMT, 1 mm pitch
• Resolutiob	3.14 Mega Pixel · • With optical IR filter · • Standard SCCB interface (I²C Bus) · RAW RGB, RGB565/555/444, CCIR656, · YUV422/420, YCbCr422 and compression
Maximum resolution	QXGA (2048 x 1536) · • Automatic image control functions including · - Automatic exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · • Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and automatic 50/60 Hz luminance detection
Operating voltage	5 V DC
Operating temperature	5 °C ~ 50 °C
Relative humidity during operation	max. 80 %
Sensor size	1/4 inch
Sensitivity	0.6 V (lx s)
Signal to noise ratio	36 dB
Dynamic range	68 dB
Fix focus	0.3 m ~ infinite
Lens	F/2.8
Frame rates	30 fps @ HVGA, VGA, XGA, 720p, QVGA · 15 fps @ UXGA, 1080p, QXGA
Dimension (LxWxH)	ca. 60 x 8 x 13 mm

Features

1 ROWS

Feature 1	Camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, embedded systems, sensors, notebooks, smartphones, tablets or instrument manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
