SYSIBTFM106

Name: SYSIBTFM106
Brand: IBT Technologies
SKU: SYSIBTFM106
Availability: InStock

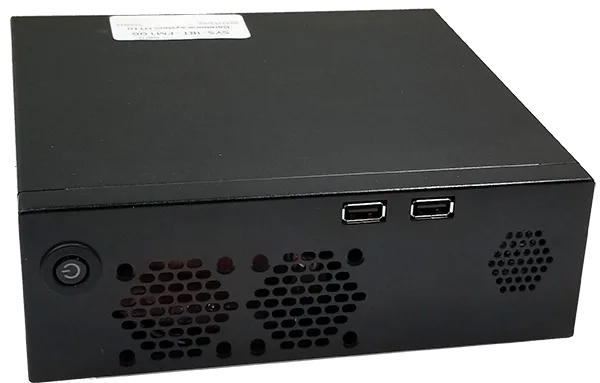

Mini-System ITX (steel case) /w Mini-ITX for Intel 6th / 7th Gen. i-core, H110 chipsets

Mini-System ITX (steel case) /w Mini-ITX for Intel 6th / 7th Gen. i-core, H110 chipsets. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

Support Intel® Core™ i7/i5/i3 processor series in an LGA1155 socket with up to 65W TDP

MÉMOIRE

Up to 32 GB

STOCKAGE

-20-60℃/ RH 20～90% (no condensation · Processors support LGA1155 up to 65w

AFFICHAGE

Display Port, HDMI, LVDS (Multi-Channel)

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

P/N # SYSIBTFM106

Spécifications

15 LIGNES

Processeur	Support Intel® Core™ i7/i5/i3 processor series in an LGA1155 socket with up to 65W TDP
Chipsets	Intel H110
Mémoire système	Up to 32 GB
Memory Type	DDR4 @ 1.2V, 2133MHz
Memory Socket	204-pin So-DIMM socket x2 (Dual Channel)
Video	Display Port, HDMI, LVDS (Multi-Channel)
Réseau	Dual GbE Ethernet Intel i219
Alimentation	External power supply 90 watts , AC input 90-240V full range
I/O expansion	Mini-PCIe - 2 x mini-PCIe(Full-/Half & Half)• PCIe - 1 x PCIe 3.0 x 4 slot, 3x SATA 6GB
Front panel	ower switch with LED, 2x USB 2.0 ports,
Back panel	USB3.0, USB2.0, DP out x1, HD out x1, Mic-in ,Line out, Dual Ethernet
Case size	190 mm(W) x 190mm (L) x 62mm (H) metal case
Environnement	0-60℃/ RH 20～90% (no condensation)
Température d’entreposage	-20-60℃/ RH 20～90% (no condensation · Processors support LGA1155 up to 65w
Certifications	CE/FCC certifications

Caractéristiques

4 LIGNES

Caractéristique 1	- Intel® 6th / 7th Gen Core i3/i5/i7 processor LGA1155 socket with up to 65W TDP
Caractéristique 2	- Display support DP, HDMI, LAN
Caractéristique 3	- DC-in Jack Default: 19V in (5.1mm / ID , 7.4mm / OD)
Caractéristique 4	- Kingston Lock hole designed for security

Informations de commande

3 LIGNES

SYS-IBT-FM106-i7	Mini-iTx system with Intel i7-7700 H110 motherboard and PSU barebone
SYS-IBT-FM106	Mini-iTx system with Intel H110 motherboard and PSU barebone
CS-IBT-FM106	Case system with external PSU barebone for Mini-iTx
