SYSIBT6321897

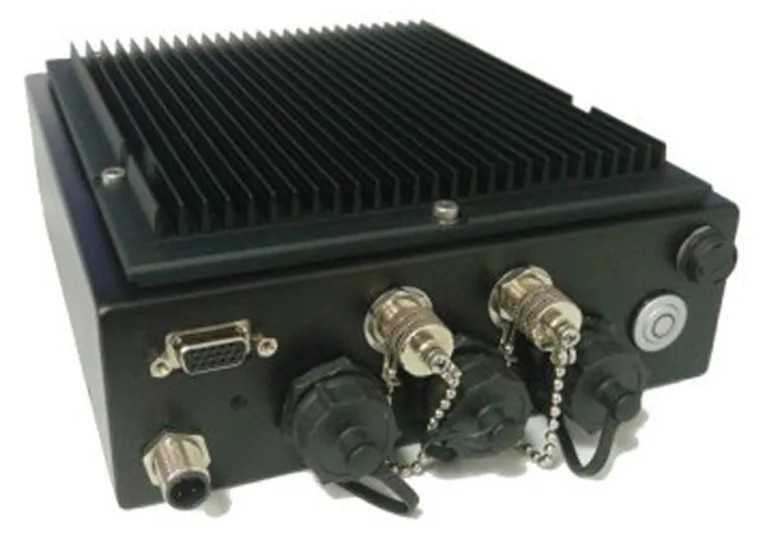

Water Proof Fanless Mini-System with IB897-i45 Intel® Atom™ E3845 SoC 3.5
Water Proof Fanless Mini-System with IB897-i45 Intel® Atom™ E3845 SoC 3.5. Local warranty support and engineering customization available on request.
Specifications
| Memory | DDR3L 1066/1333 up to 8GB SO-DIMM |
|---|---|
| LAN | 2 x Intel® I210IT Gigabit Ethernet controller |
| USB Port | 1 x USB 3.0, 2 x USB 2.0, * 2x USB2 |
| Display Port | 1 x VGA |
| Audio | Line-In/Out, Mic-In |
| Hard Drive | Removable HDD Kit, Option: Anti-Vibration Removable HDD Kit |
| Digital I/O | 8 bit programable |
| Watchdog Timer | 1~255 sec. |
| Power Input | +9V ~ +30V DC-In |
Features
| Feature 1 | IP67 Fanless Mini-System |
|---|---|
| Feature 2 | CPU TDP 10W, work under temperature 75ﾟC |
| Feature 3 | Easy HDD/SDD removable tray |
| Feature 4 | System with Vent vale technology |
| Feature 5 | All Waterproof cables |
I/O — Rear panel
Front access
Where the SYSIBT6321897 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
Licensed customers get access to BIOS source, schematics, and full production test documentation.
