SI-624-AI

Name: SI-624-AI
Brand: IBASE Technology
SKU: SI-624-AI
Availability: InStock

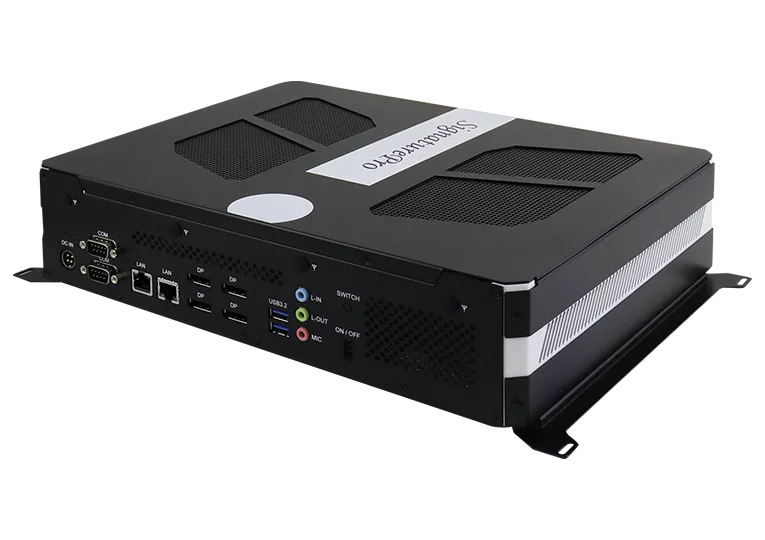

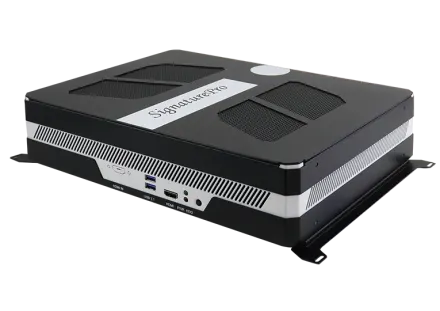

Edge AI Computer with 14th/13th Gen Intel® Core™ Processor & NVIDIA Ampere Architecture MXM GPU Card

Edge AI Computer with 14th/13th Gen Intel® Core™ Processor & NVIDIA Ampere Architecture MXM GPU Card. Local warranty support and engineering customization available on request.

CPU

14th/13th Gen Intel® Core™ processors

MEMORY

4x DDR4-3200 U-DIMM, Max. 128GB, ECC compatible

STORAGE

1x M.2 M-Key (2280)

ETHERNET

2x Gigabit LAN

Edge AI ComputerAI Computing Platform

REQUEST QUOTE REQUEST DATASHEET

P/N # SI-624-AI

Introduction to Watchdog Timer

Specifications

25 ROWS

System Mainboard	MBD624
CPU Type	14th/13th Gen Intel® Core™ processors
System Speed	Up to 5.0/3.8GHz
Memory	4x DDR4-3200 U-DIMM, Max. 128GB, ECC compatible
AI Accelerator	NVIDIA Ampere Architecture MXM GPU card/ up to 5,888 CUDA cores / 17.66 TFLOPS peak FP32 performance / 184 Tensor Cores
LAN	2x Gigabit LAN

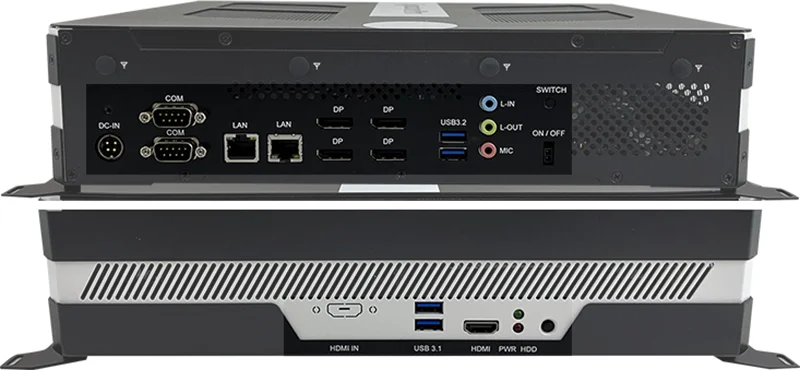

Front Panel External I/O	1x HDMI 1.4 for console1x HDMI-in for capture card (optional)2x USB 3.21x Power / HDD LED1x Power button
Rear Panel External I/O	4x DisplayPort2x USB 3.22x RJ45 for Gigabit LAN2x RS-232 serial port1x Audio connector for Line-in/out/MIC1x Power jack connector
Expansion Slot	1x M.2 (M-key, type:2280, supports NVMe with PCI-E(x4) Gen.4 signal only)1x M.2 (E-key, type: 2230, 2x PCI-E(x1), USB 2.0; supports CNVi)1x M.2 (B-key, type:3052, supports 5G/4G/LTE)1x UIM/SIM card slot
Storage	1x M.2 M-Key (2280)
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement	+19V DC
Power Supply	330W power adapter
Construction	SGCC
Chassis Color	Black and white
Mounting	Standard system bracket
Weight	3.8kg (8.38lbs)
Dimensions	329.2mm(W) x 250.25mm(D) x73.1mm(H)12.96(W) x 9.85(D) x 2.87(H)
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20°C ~ 80°C (-4°F~176°F)
Relative Humidity	5%~90% @45°C (non-condensing)
Vibration	SSD: 5 grms / 5~500Hz / random operation
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE/FCC class-B, UL, LVD & CCC
Operating System	Windows10 / Linux
