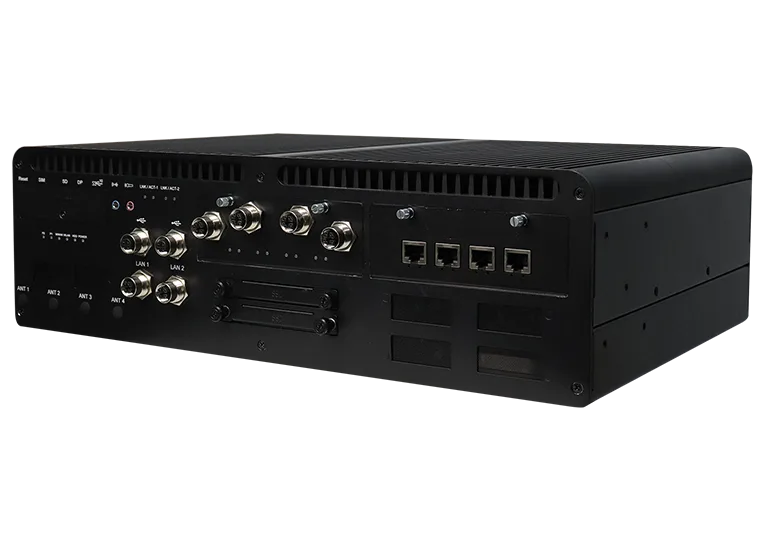

MPT 8000RH

Name: MPT 8000RH
Brand: IBASE Technology
SKU: MPT_8000RH
Availability: InStock

Système informatique ferroviaire certifié EN50155/EN45545 — 10th Gen Intel® Core™ Processor M12 Connection and Dual WWAN

Système informatique ferroviaire certifié EN50155/EN45545 — 10th Gen Intel® Core™ Processor M12 Connection and Dual WWAN. Soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

PROCESSEUR

10th Gen Intel® Core™ Desktop processors

MÉMOIRE

2x DDR4-2666 SO-DIMM, 2x 8GB (default)Maximum size supported: 128GB

STOCKAGE

2x 2,5" Removable device bay for SSD devices2x M.2 M-key SSD devicesRAID 0/1/5 supported, Max. 4x SATA devices

ENVIRONNEMENT

-10°C~60°C (14°F~140°F)

MPT R Series EN50155…Railway Computer System

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

P/N # MPT_8000RH

Pilote

Spécifications

19 LIGNES

Carte mère du système	MBT-8001RW
Type de processeur	10th Gen Intel® Core™ Desktop processors
Vitesse du processeur	4.5GHz
Mémoire	2x DDR4-2666 SO-DIMM, 2x 8GB (default)Maximum size supported: 128GB
E/S du panneau avant	2x Accessible 2.5" device bay (SSD/HDD)2x M12 X-code 8-pin for GbE LAN, isolated1x M12 4-pin A-code for USB 2.0, isolated1x M12 4-pin A-code for USB 1.1, isolated1x 3.5mm pink audio connector for MIC-Input1x 3.5mm blue audio connector for Line in4x SMA Antenna holes with cap2x PCI-Ex4 card slots for IDT8102/IDT 7204 (with cover when empty) - IDT8102: 2x 10G LAN card - IDT7204: 4x 1G PoE card2x External accessible SIM socket1x Micro SD card socket1x Recessed Access Tach-switch for System Reset1x USB Type-C with graphics (No PD function)1x USB3.2 Gen.2 type-AIndicators: Four light-pipe for four status LED - 1x 0402 SMT green LED for power status - 1x 0402 SMT white LED for storage activity status - 1x 0402 SMT blue LED for WLAN activity status - 1x 0402 SMT amber LED for WWAN activity - 2x 0402 SMT green LED, programmable
E/S externes du panneau arrière	1x Main power input, Staubli connector2x Removable with screw lock FUSE holder1x Backup power source, 24VDC only1x DVI-D output1x HDMI output1x USB3.2 Gen.1 type-A1x 3.5mm green audio connector for Line-out1x Male DSUB9 for RS-485, isolated1x Male DSUB9 connector for RS-232/485, isolated1x Female DSUB9 for 8x DO and ground by cable, isolated1x Female DSUB9 for 8x DI and ground by cable, isolated1x M4 with washer screw hole for grounding connection4x SMA Antenna holes with cap
Stockage	2x 2,5" Removable device bay for SSD devices2x M.2 M-key SSD devicesRAID 0/1/5 supported, Max. 4x SATA devices
Emplacements d’extension	1x mPCI-E full/half-size socket1x 3042/52 M.2 B-Key socket for WWAN (supports SIM1) - This M.2 socket comes with USB2.0/3.0/PCI-Ex1 interface only1x 3042/52 M.2 B-Key socket for WWAN (supports SIM2) - This M.2 socket comes with USB2.0/PCI-Ex1 interface1x 2242/80 M.2 M-key socket for SSD/VPU/WLAN card1x 2242/80 M.2 M-key socket for SSD/VPU/WLAN card (NVMe support)1x 2230 M.2 E-Key socket for WLAN (CNVi support)
Alimentation	Main: 72V /110VDCSecond: 24V DC only, once the main power loses, switch to second power automatically
Construction	Metal
Couleur du châssis	Black
Montage	19” Rack mount
Dimensions	482 (W) x 308 (D) x 132 (H) mm18.97” (W) x 12.13” (D) x 5.2” (H)
Température de fonctionnement	-10°C~60°C (14°F~140°F)
Température d’entreposage	-40°C ~ 85°C (-40°F~185°F)
Humidité relative	10 ~ 95% @ 45°C, (non-condensing)
Vibrations	EN61373
Chocs	EN61373
Certifié	EN50155: 2021, EN45545-2CE/FCC class-A
